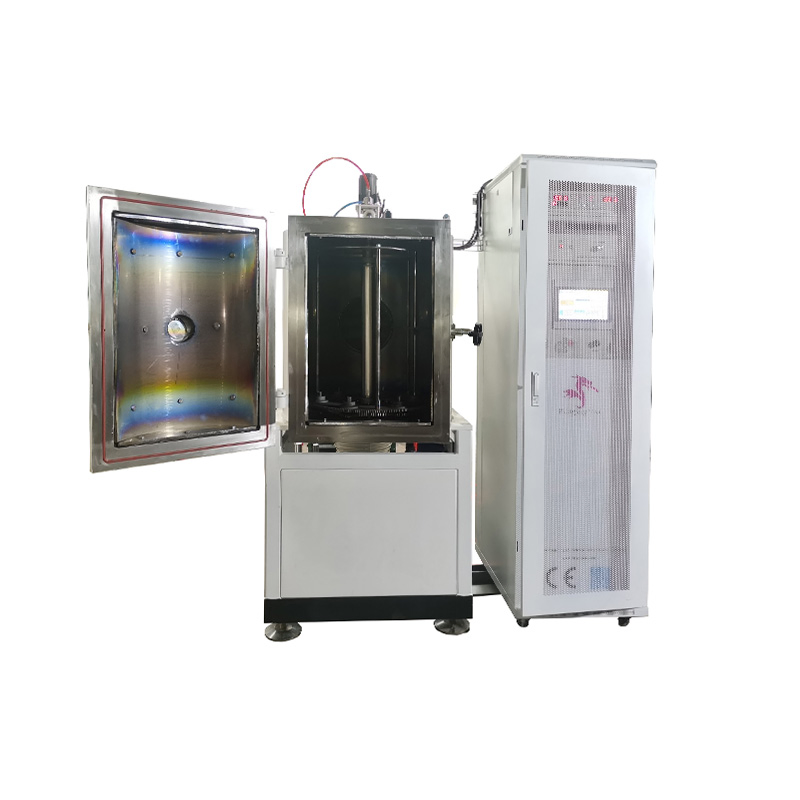

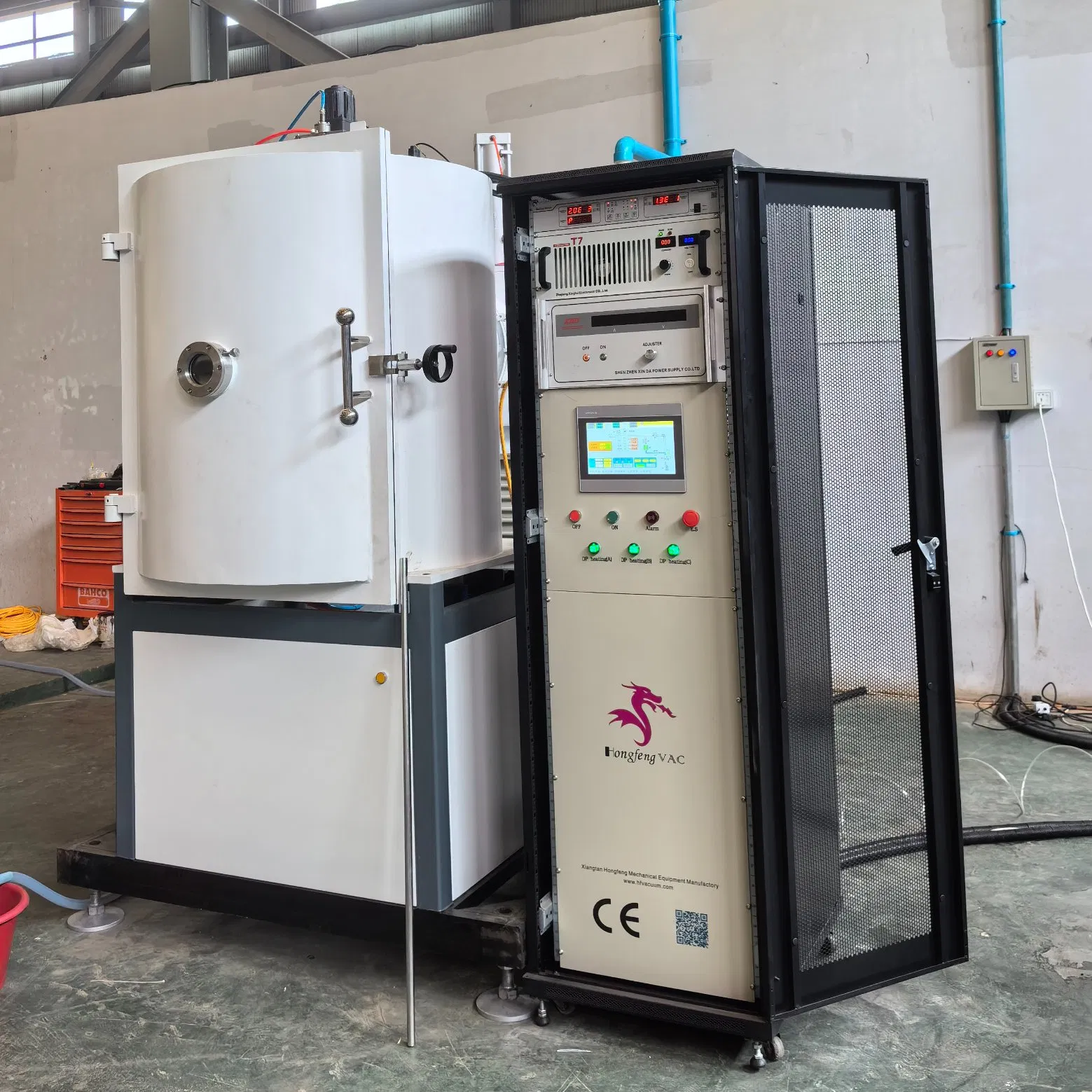

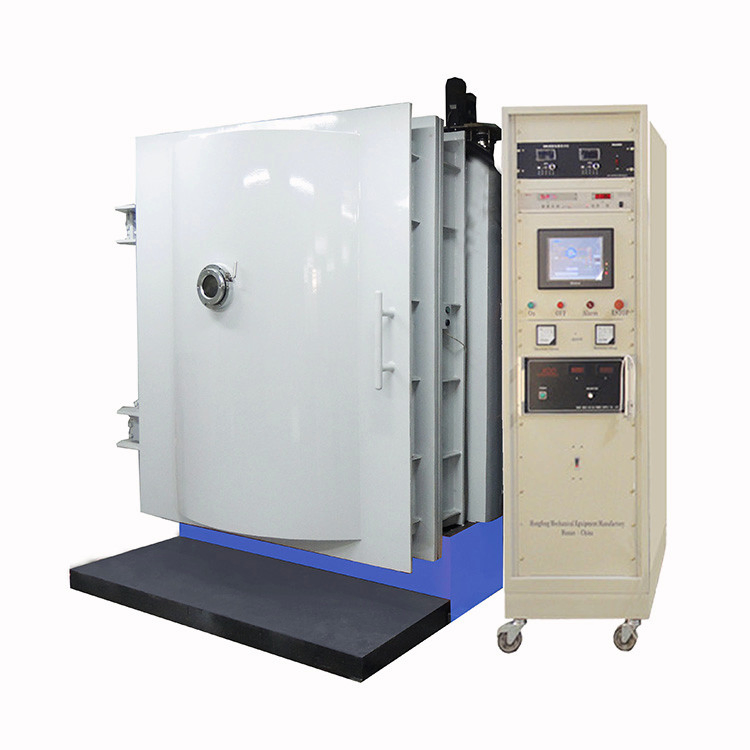

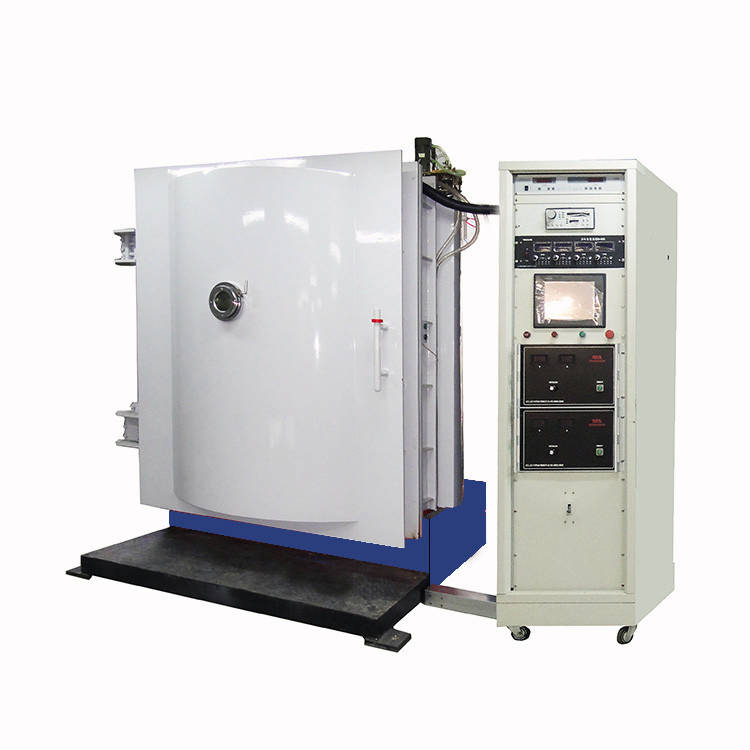

Vacuum Plating Silver Thin Film Deposition Magnetron Sputtering System
The equipment features a reasonable structure, ensuring even coating quality, high pumping speed, and short cycle times. It offers high efficiency, easy operation, low energy consumption, and stable performance. It is widely used in automotive, audio, small appliances, computers, watches, toys, cell phones, reflective cups, and cosmetics industries.

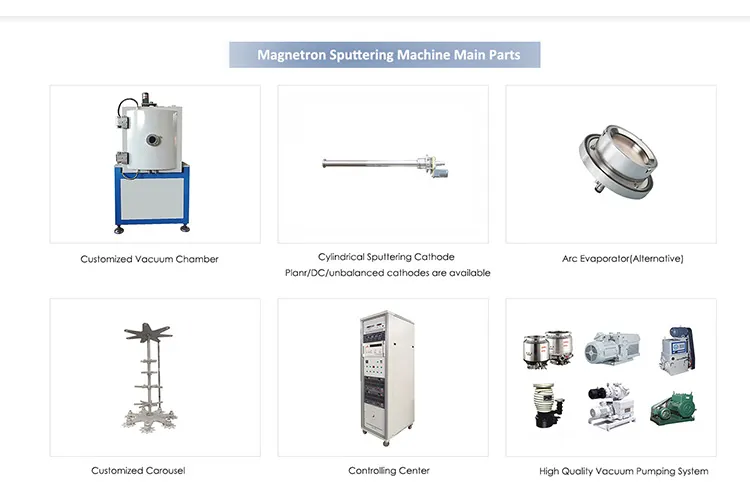

DC magnetron sputtering coating machines are typically utilized for direct sputtering coating on various substrates such as plastics, glass, metal, and ceramics. We specialize in designing magnetrons in rectangular, cylindrical, and circular shapes across various sizes.

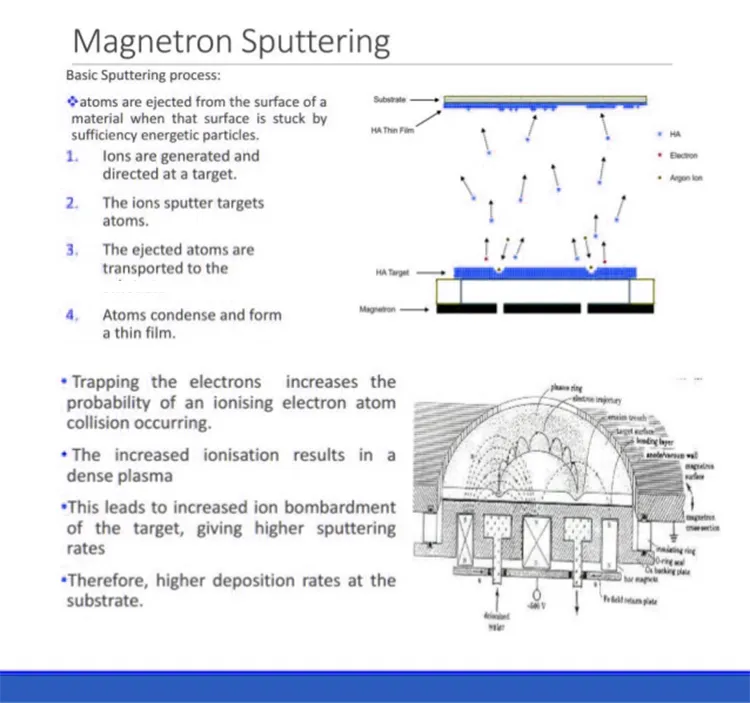

Magnetic fields define the behavior and properties of ion-charged particles used for sputtering. Advanced modeling of magnetron sputtering enhances productivity, applicability, and reproducibility in high-precision coating tasks.
| Model Number | SP-1000 | SP-1200 | SP-1400 | SP-1800 |
|---|---|---|---|---|
| Vacuum Chamber Dimension | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 |
| Chamber Material | Carbon steel, SUS304 or SUS316L | |||

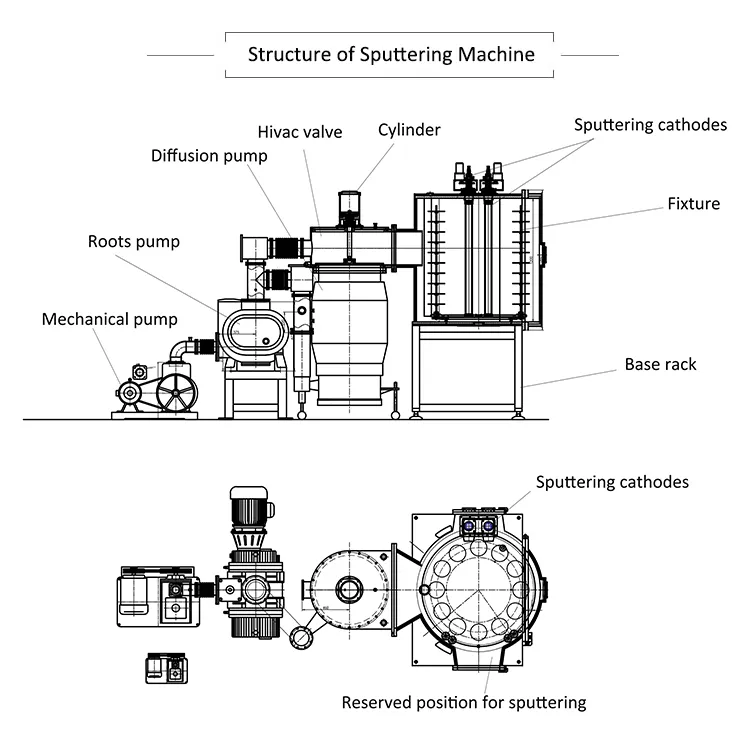

| Sputtering Cathodes | ≥1 sets, DC sputtering system, cylindrical or rectangle | |||
| Pumping Time | Atmosphere to 5.0*10-2Pa < 8 minutes | |||
| Ultimate Vacuum | 5.0*10-4 Pa | |||
| Working Mode | Automatic or Manual mode, via PLC touch screen | |||
| Total Power | 40-100kW | 70-1000kW | ||

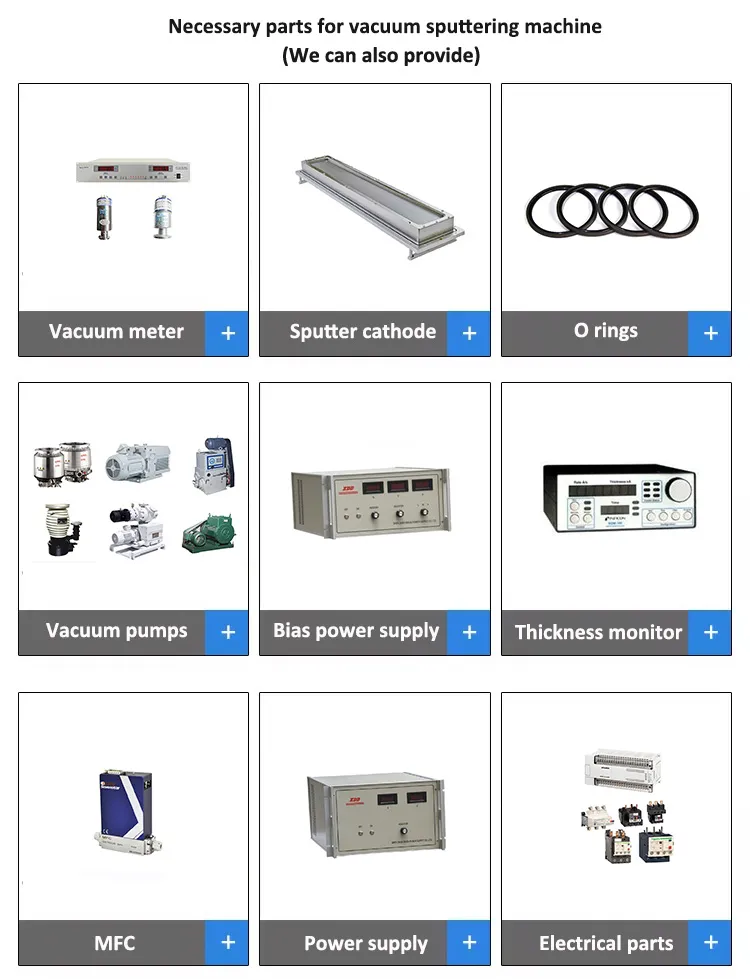

Necessary parts available for daily production:
