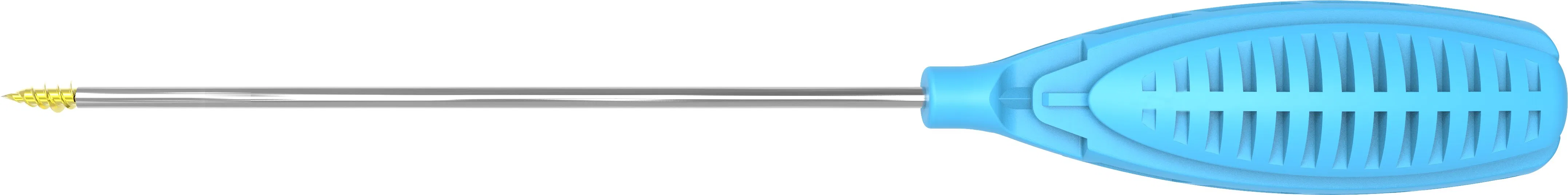

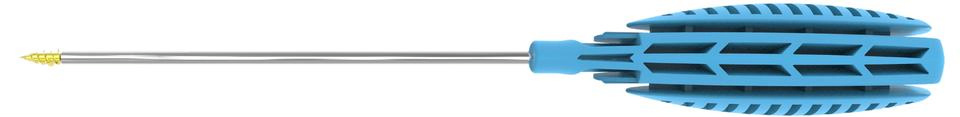

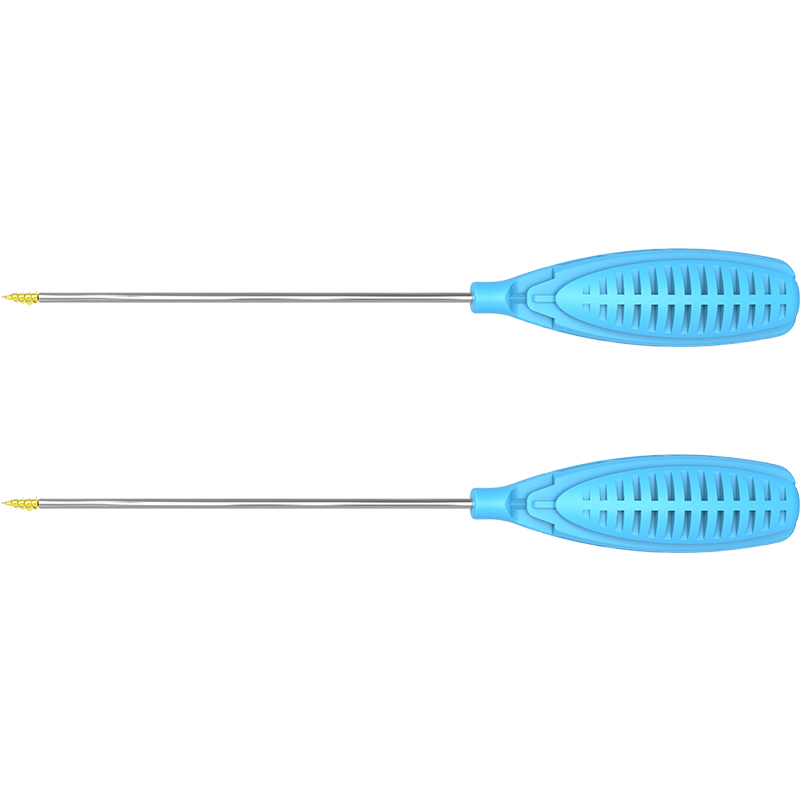

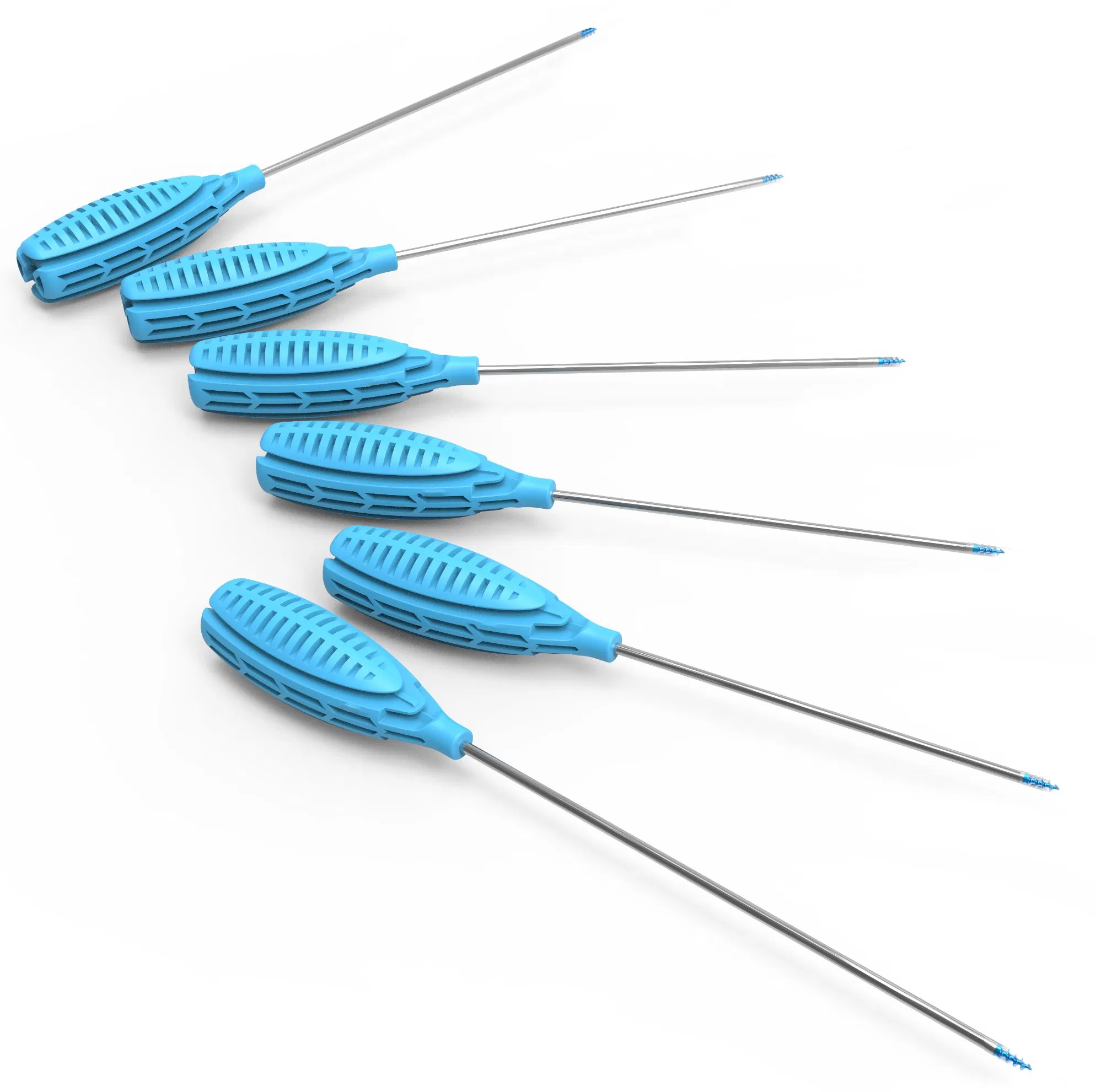

A suture anchor is a precision-engineered medical implant designed to fix sutures into the bone, effectively reconnecting soft tissue and bone structures. This fully threaded anchor features suture holes through its center, providing exceptional flexibility for working sutures. The design allows for minimal bone removal during guide hole creation without compromising pullout strength.
| Model | Anchor (mm) | Suture | ||
|---|---|---|---|---|
| External Diameter | Anchor Length | Total Length | Specification | |
| T20-φ2.0x7.5 | φ2.0 | 7.5 | 184.3 | 2 0# sutures |
| T12-φ2.8x11.5 | φ2.8 | 11.5 | 251.4 | 1 2# suture |
| T22-φ3.5x12 | φ3.5 | 12 | 255.2 | 2 2# sutures |
| T22-φ5.0x15.5 | φ5.0 | 15.5 | 257.5 | 2 2# sutures |
| T22-φ6.5x16.3 | φ6.5 | 16.3 | 260.7 | 2 2# sutures |

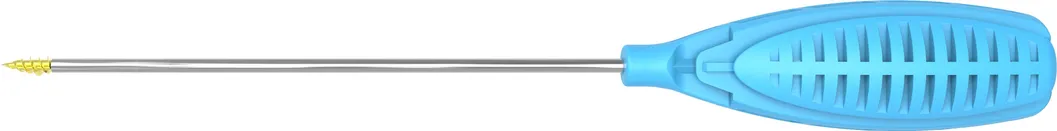

Scope of Use: Suture Anchors are surgical implants used for the attachment of soft tissues to bone, such as ruptured tendons and ligaments. They consist of the anchor body, the suture, and the "eyelet" interface.
Composition Characteristics: The suture utilizes ultra-high molecular weight polyethylene (UHMWPE) and polyester composite braid. This combination ensures superior mechanical properties, a better tactile feel, and more convenient handling for the surgeon.
Suture anchors are used to reattach soft tissues like tendons and ligaments to bone. They provide a stable fixation point to ensure proper healing of sports injuries or degenerative conditions.
The anchors are made from medical-grade Titanium alloy for biocompatibility, while the sutures are crafted from high-strength ultra-high molecular weight polyethylene and polyester braid.
Thanks to the sharp head design, these anchors often do not require pre-drilling, which simplifies the surgical procedure and reduces operation time.
We offer a 1-year warranty including free repair for quality issues. Additionally, online technical support is available to assist medical professionals with any operational questions.

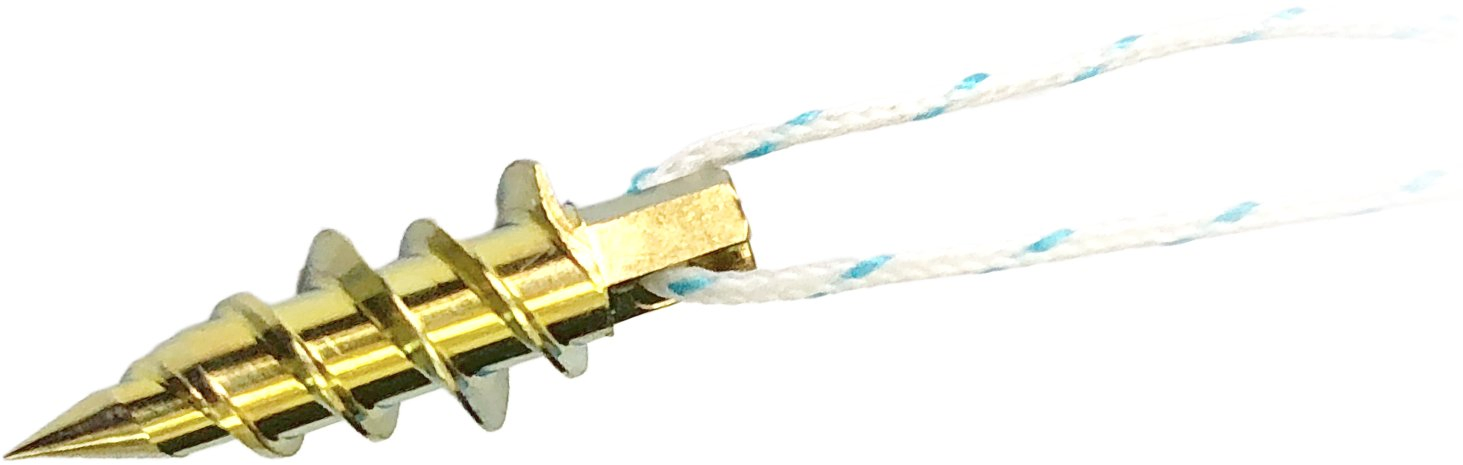

The high and low double thread design provides stronger torsional strength and higher pull-out resistance, ensuring the anchor stays securely in place while allowing for faster screw-in.
Yes, the products are Class II medical instruments and carry CE and ISO13485 certifications, meeting international standards for safety and quality.
