Product Description

📊

Basic Specifications

Model NO.
H-60SPCC25NP-N
Connection Method
Fastener
Process
Stamp
Certification
GB, RoHS, SGS
Surface Treatment
Nickel Plated
Wall Thickness
2.5mm
Diameter
28.0mm
Material
SPCC Steel
Application
Worktable/Trolley/Rack
Capacity
100,000 PCS/Day
🛠️

Product Overview

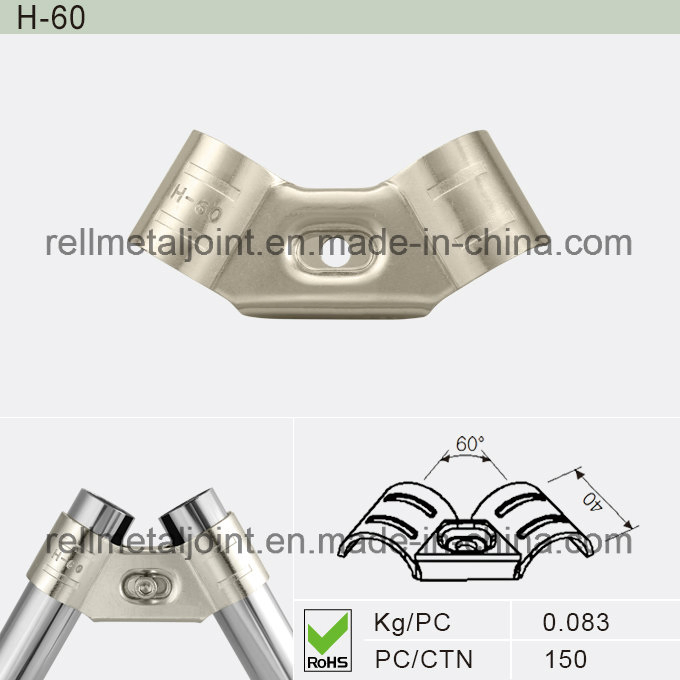

Nickel Plated Joint and Pipe Racking System

The Nickel Plated joint is a critical component for modular racking systems, designed to be used with Φ28mm SUS pipes, aluminum alloy pipes, and various coated pipes (ABS/PE/Powder painted). It provides a robust, flexible solution for lean production environments.

♻️ Reusable

Can be disassembled and re-used for different configurations.

⚙️ Flexibility

Easy to adjust and modify for evolving workflow needs.

⚡ Simple Operation

Fast installation with basic tools, reducing labor time.

📈 Extensibility

Easily expand existing racks or production lines.

📋

Technical Parameters

Parameter Specification Test Standard
Material SPCC (Q/TB201-2011) Industrial Grade Steel
Tension Test ≥80Kg Q/RELL002-2012
Surface Finish Nickel Plated Anti-corrosion Layer
Salt-Spray Test ≥24h Q/RELL001-2012
Net Weight 0.083 Kg Per Piece
Packing 150 PCS / CTN 280*225*160 mm
❓

Frequently Asked Questions

1. What type of pipes are compatible with these metal joints?
These joints are specifically designed for Φ28mm diameter pipes, including stainless steel (SUS), aluminum alloy, ABS/PE coated, and galvanized pipes.
2. Are the joints resistant to corrosion?
Yes, the nickel-plated surface treatment provides excellent resistance to oxidation and has passed the 24-hour salt-spray test for durability.
3. Can I reuse these joints if I want to change my rack design?
Absolutely. One of the main advantages of this system is its reusability. You can easily loosen the fasteners and reconfigure the parts as needed.
4. What is the load-bearing capacity of a single joint?
Each joint undergoes a tension test with a rating of ≥80Kg, ensuring high stability for industrial worktables and trolleys.
5. Does the product meet environmental safety standards?
Yes, the products are compliant with RoHS and SGS specifications, making them safe for various industrial and commercial environments.
6. How are the products packaged for shipping?
The standard packaging is 150 pieces per carton, with a carton size of 280*225*160 mm, typically shipped on pallets for bulk orders.
