Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
1 / 5
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System

Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System

Customization: Available
After-sales Service: Free Installing and Training, Technical Support
Warranty: One Year Limited Warranty
Send Inquiry

Product Description

Basic Specifications

Model NO.
LH-
Type
PVD Vacuum Coating Machine
Coating
Vacuum Coating
Substrate
Steel
Certification
CE, ISO
Condition
New
Product
Ion Plating Equipment
Business Type
Manufacturer/Supplier
Structure
Vertical, Single Door
Control System
Manual Automatic All-in-One
Operating System
PLC Touching Screen
Coating Color
Gold, Rosegold, Silver, Black, Blue Ect
Chamber Material
Stainless Steel
Transport Package
Wooden Package
Origin
China, Guangdong
HS Code
8543300090

Product Description

Titanium Nitride Gold PVD Ion Plating Equipment
PVD Ion plating equipment is an ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, and large productive capacity.
Key Characteristics
  • Electric arc principle integrating cold cathode arc discharge self-sustained light.
  • Pulse technique and magnetron sputtering technology for thinning particles.
  • Improved film properties and surface adhesion.
  • Capability to coat both metal and non-metal surfaces.
Applied Industries: This equipment is extensively used for ultra-hard coating of tools and moulds, decorative coating for car wheels, ceramics, golf equipment, watchmaking, hotel products, sanitary ware, luminaires, optical frames, and hardware.

Vacuum Ion Plating Machine System:

PVD Ion Plating Equipment

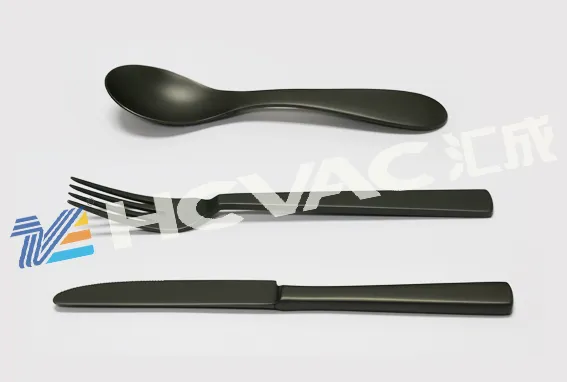

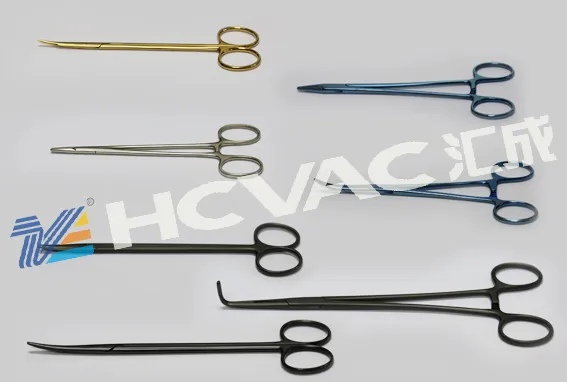

Samples Coated by the Equipment:

Coating Sample
Coating Sample
Coating Sample
Coating Sample
Coating Sample

Technical Specifications

Mode / Dimension LH-800 LH-1250 LH-1416 LH-1618
Chamber Size 800*1000mm 1200*1500mm 1400*1600mm 1600*1800mm
Main Configuration Eight multi-arc targets Twelve multi-arc targets Fourteen multi-arc targets Twenty multi-arc targets
Power Source Electric-arc power, Filament power, Pulsed bias power supply
Process Gas Control Mass flowmeter + Electromagnetic ceramic valve
Vacuum System Molecule/Diffusion pump + Roots pump + Mechanical pump
Baking Temp. Normal to 350°C PID control, radiation heating
Control Mode Manual/Automatic/PC/PLC + HMI (Four choices)

Frequently Asked Questions

What colors can be achieved with this PVD machine?
The equipment can produce a wide range of decorative colors including Gold, Rose Gold, Silver, Black, Blue, and more, depending on the coating material and gas used.
Which materials can be coated using PVD Ion Plating?
It is suitable for coating various metals like steel, titanium, nickel, chromium, and copper, as well as non-metal substrates like ceramics and hardware.
What are the main advantages of this equipment?
The machine offers a fast deposition rate, high ionization rate, low operating costs, and is an environmentally friendly, pollution-free process.
Is the operation system easy to use?
Yes, the system features a PLC touch screen with manual and automatic all-in-one control options, making it user-friendly for operators.
Can the machine size be customized?
Yes, we can design the dimensions of the equipment according to specific technical requirements and production needs of the customer.
What is the vacuum system performance?
The vacuum system uses a combination of molecule or diffusion pumps with roots and mechanical pumps, achieving a range of 5.0*10^-4 to 5.0*10^-5 Pa.
