Tonk Orthopedic Implants
1 / 5
| Product Type | Nail Specification | Accessory | Screw Specification |
|---|---|---|---|
| PFNA Nail (Short) | Φ9 * 180/200/220/240 | Locking Screw | Φ4.7 * 26 - 60 |
| Φ10 * 180/200/220/240 | Φ4.7 * 64 - 84 | ||
| Φ11 * 180/200/220/240 | Blade Screw | Φ10.4 * 70 - 90 | |
| Φ12 * 180/200/220/240 | Φ10.4 * 95 - 110 | ||
| Custom Sizes Available | Φ10.4 * 115 - 120 |

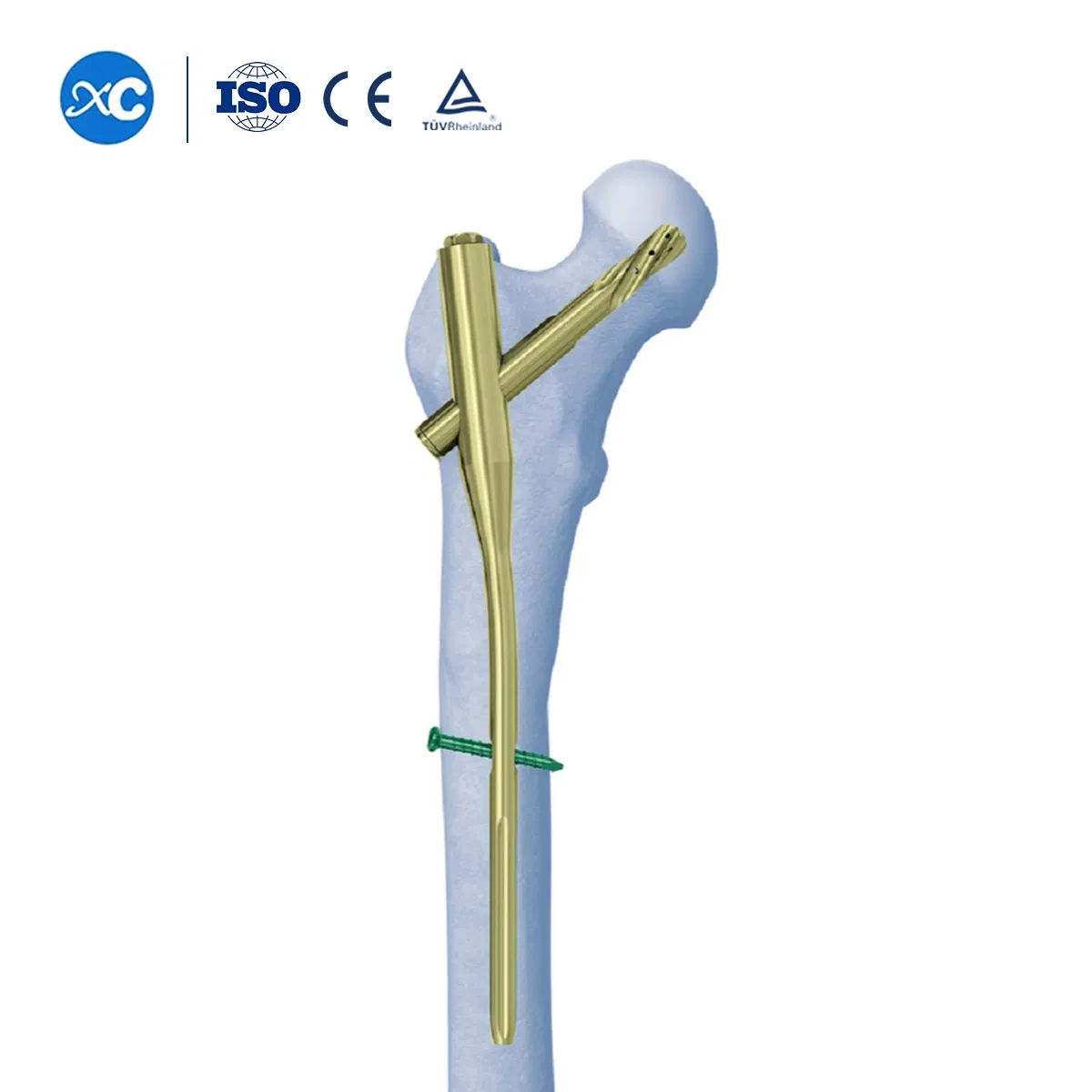

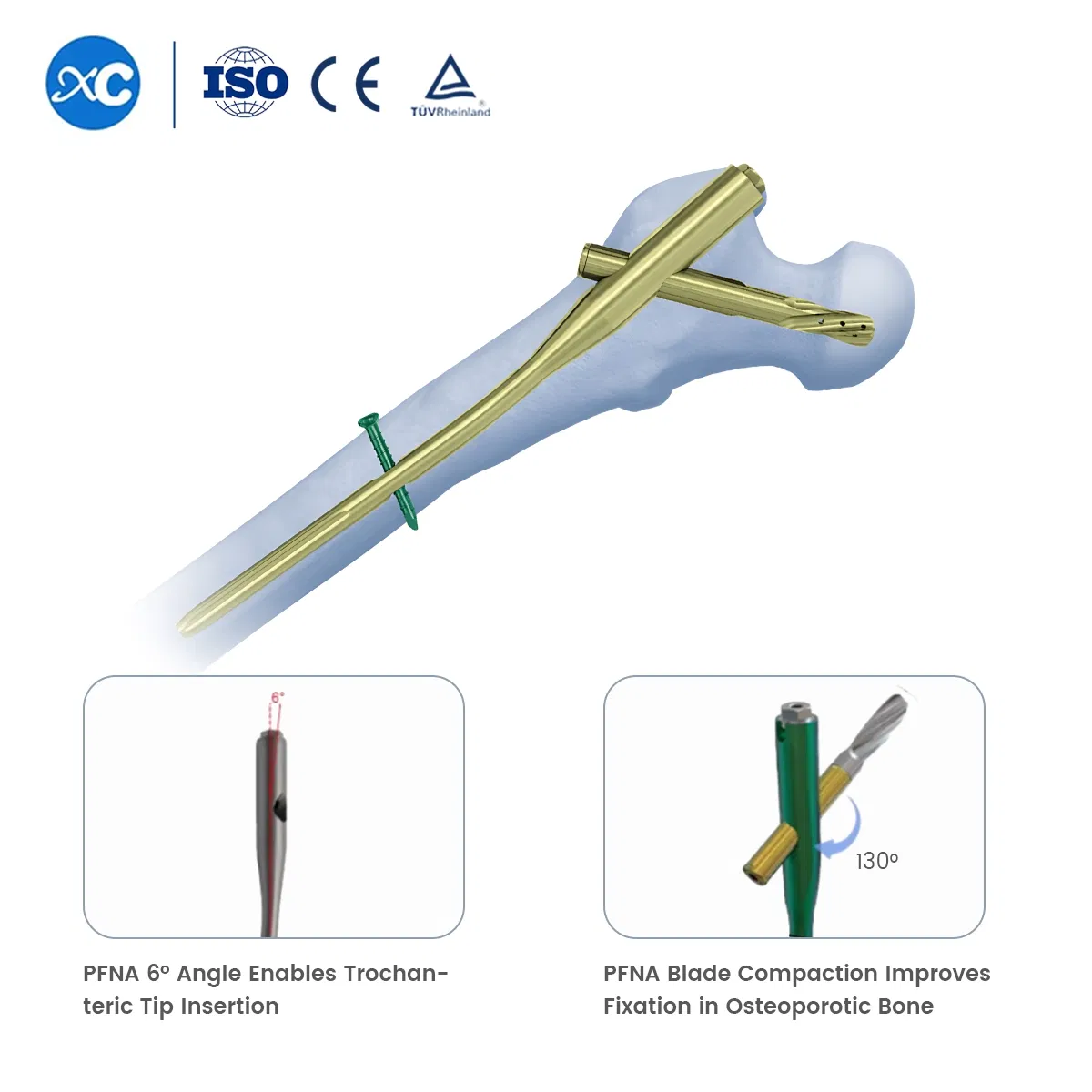

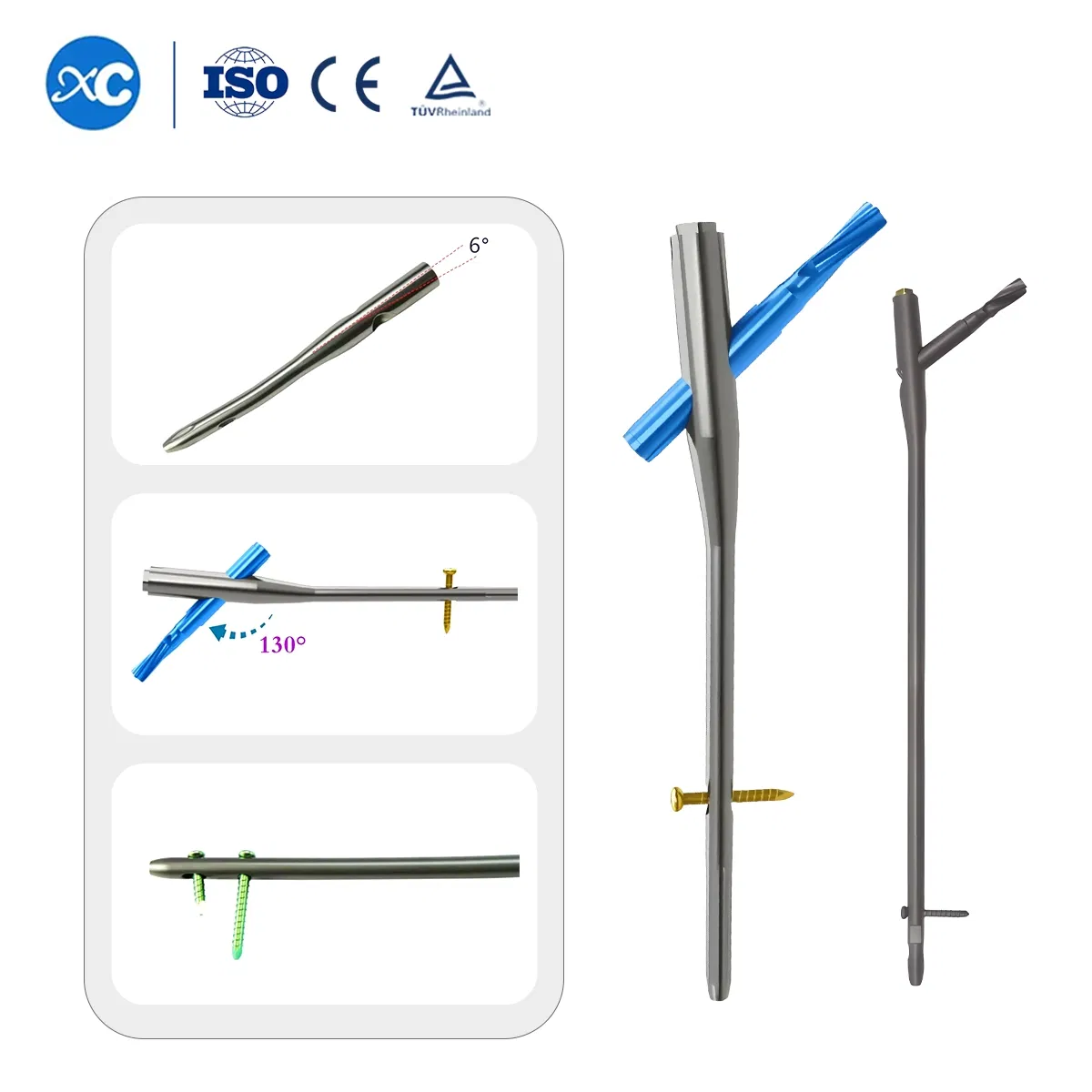

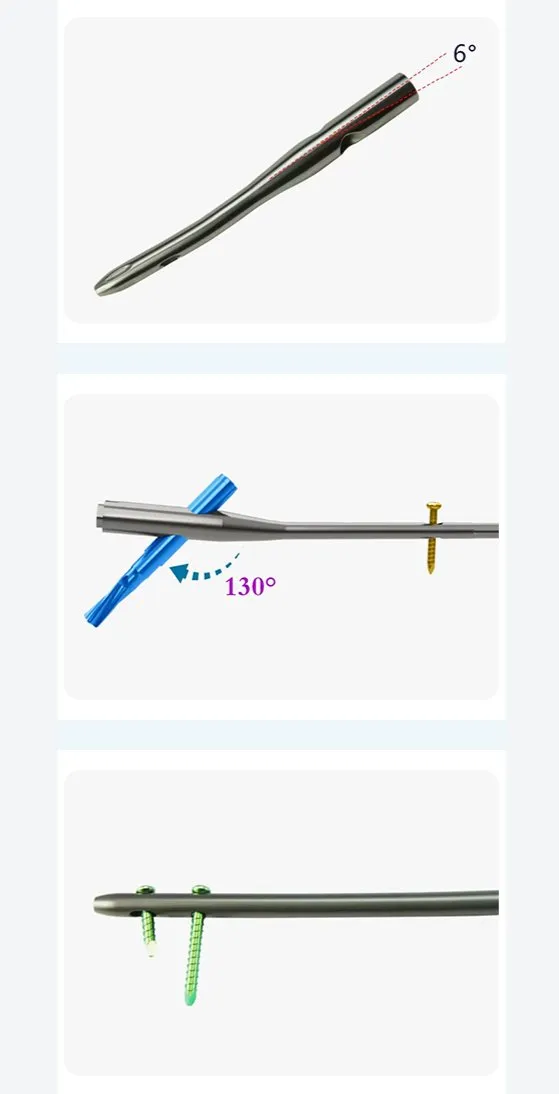

The PFNA has a medial-lateral angle of 6°. This specific geometry allows for easy insertion at the tip of the greater trochanter, minimizing surgical trauma.
Inserting the PFNA blade compacts the cancellous bone, providing superior anchoring. This is especially critical for patients with osteoporotic bone structures.

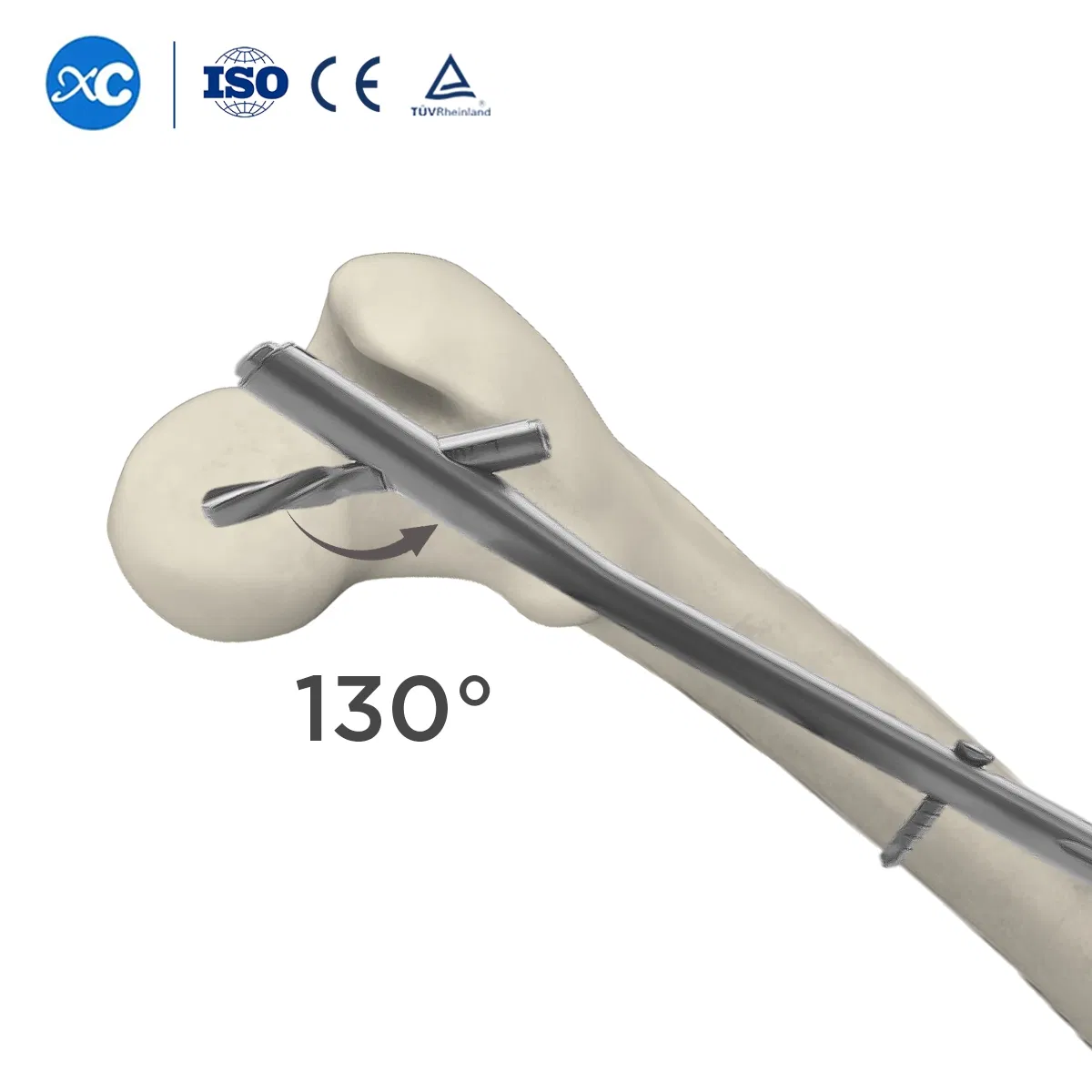

The PFNA blade screw offers significantly higher cut-out resistance compared to standard screws. Its 130° angle ensures optimal ergonomic load distribution.

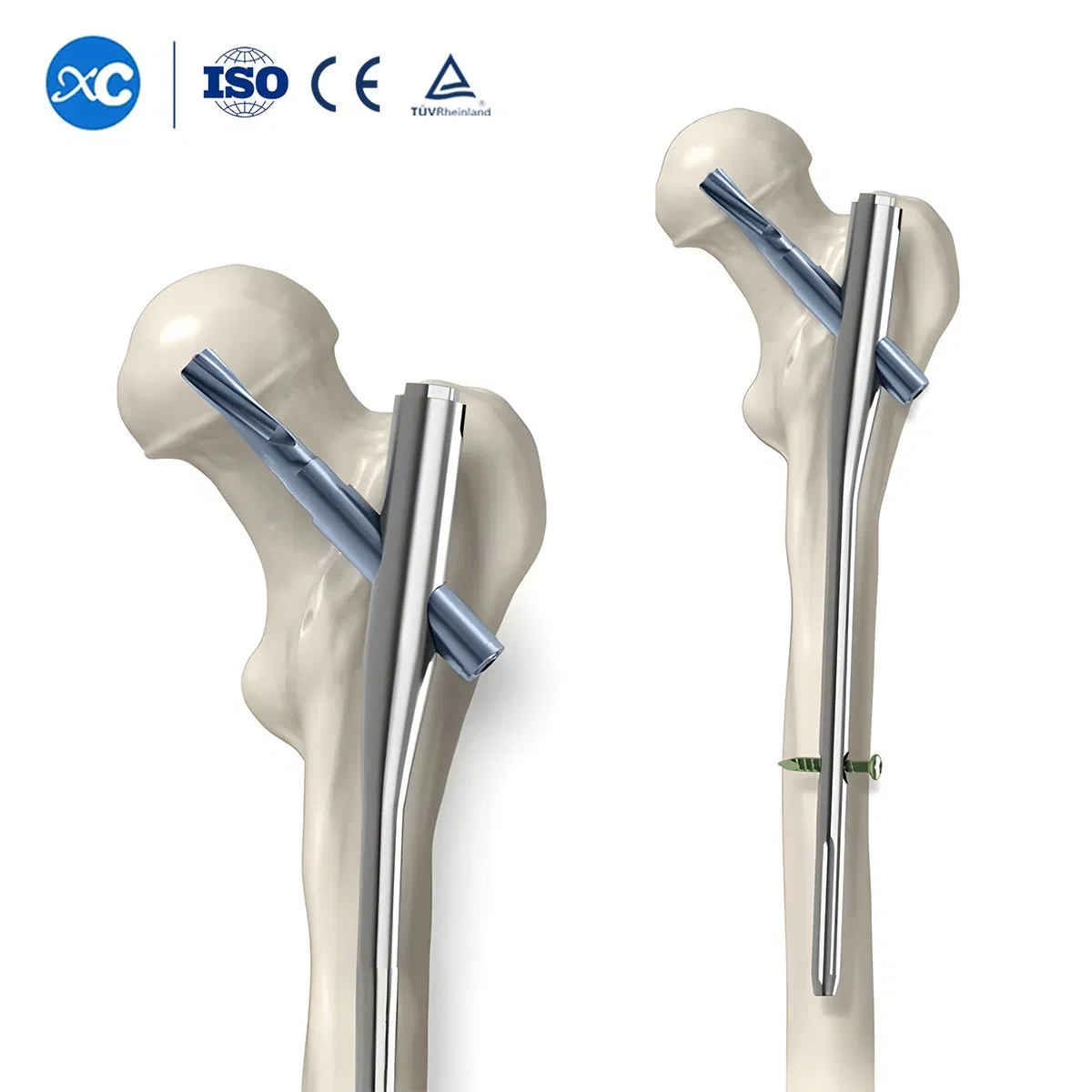

Supports both static and dynamic locking via the aiming arm. Long nail variants also allow for secondary dynamization to promote bone healing.
Manufactured using high-grade medical materials to ensure biocompatibility and long-term durability within the human body.

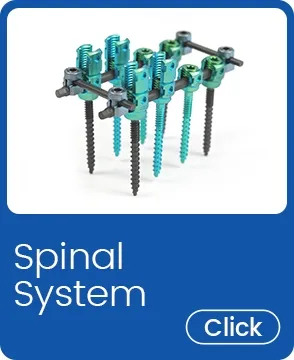

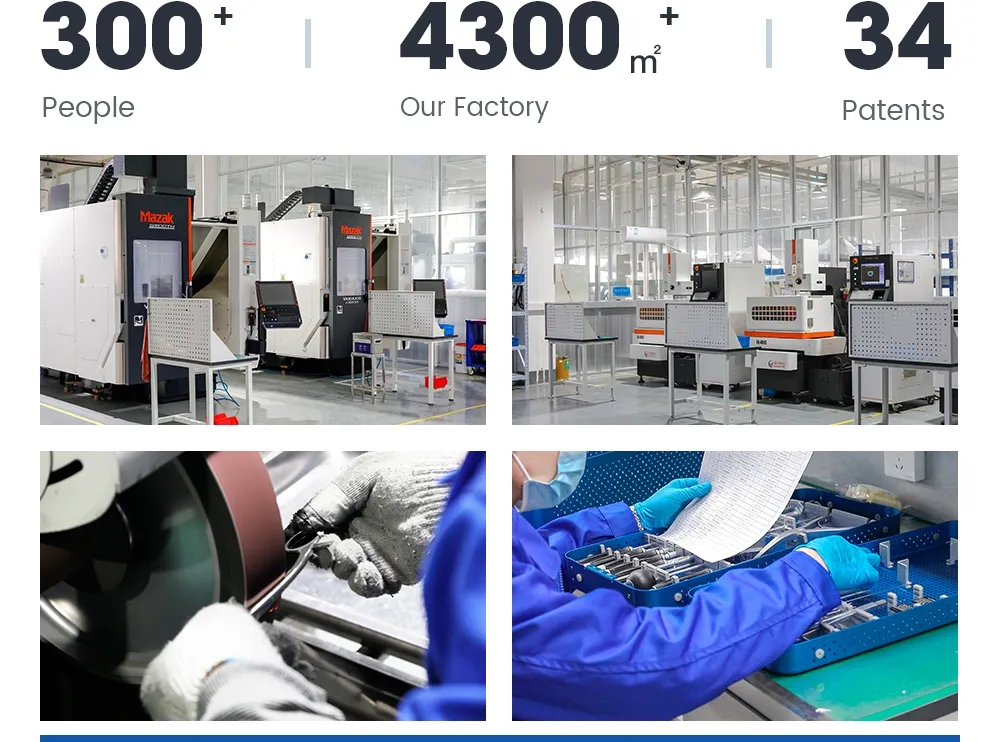

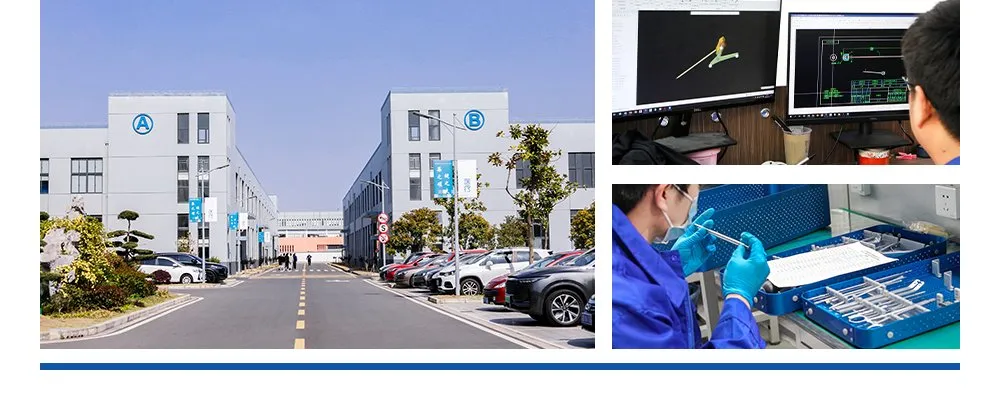

We offer a full range of orthopedic implants and instruments. With over 15 years of research and development, our production covers spinal systems, interlocking nail systems, locking plate systems, and medical power tools.
