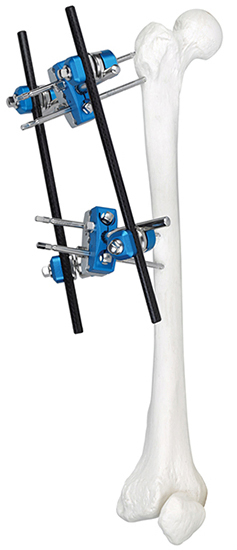

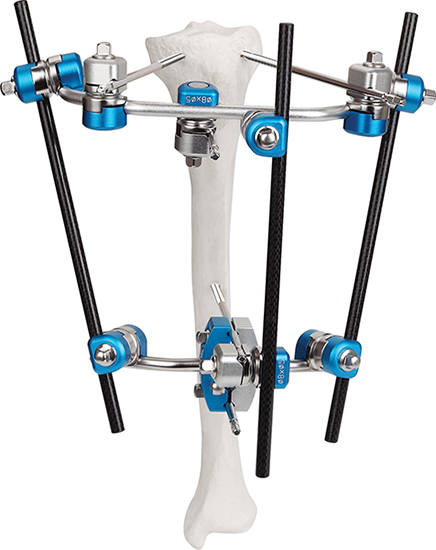

External Fixator-- Modular Fixation External Fixation System
Distinguished Product Features
- Engineered with cutting-edge technology for unparalleled ease of use.
- Allows independent arrangement of bone screws for both proximal and distal fractures.
- Snap-fit design for streamlined operation, significantly reducing time and effort.
- Utilize medical-grade aluminum carbon fiber to enhance the clarity of fracture vision.
- Provides optimal stability and flexibility for superior performance.
- Compact frame design for improved efficiency.
- Designed to address complex fractures and soft tissue loss, balancing variety with convenience.
- Ensures simple and highly effective usage.
| Component Name |
Specification |
Quantity |

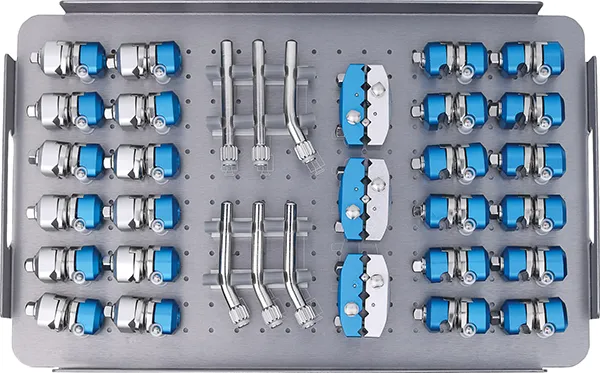

| Pin To Rod Coupling | φ8/4-5 | 12 |
| Rod To Rod Coupling | φ8/8 | 12 |
| 5-Hole Pin Clamp | φ8/5 | 3 |
| Straight Post | φ8 | 2 |
| 30° Post | φ8 | 4 |

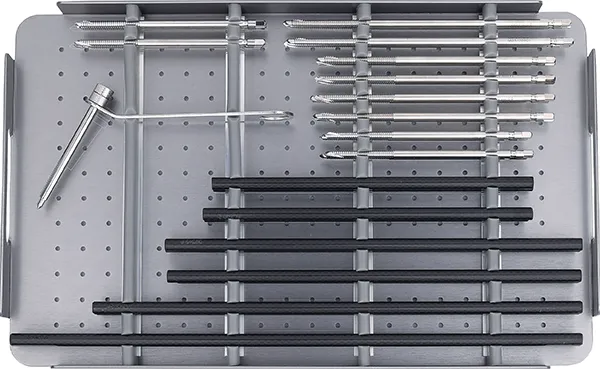

| Self Drilling/Self Tapping Bone Screws | φ5*180 / 150 / 130 / 120 | 4 / 8 / 4 / 4 |
| Guides | φ4/5 | 1 |
| Carbon Fibre Rod | φ8*350 / 300 / 250 / 200 | 2 / 2 / 4 / 4 |
| Semi-Circular Curved Connecting Rod | φ8*160 / 200 | 1 / 1 |

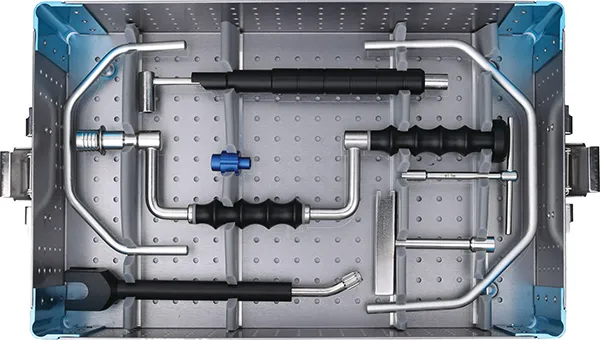

| Instruments (Wrenches, Drill, Driver) | Various (#7, #22, φ5) | 1 each |

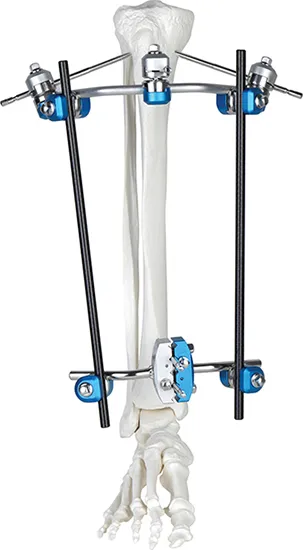

| Proximal Tibia External Fixator |
|---|
| Rod to Rod Coupling φ8/8 | 4 Pieces |
| Pin To Rod Coupling φ8/4-5 | 3 Pieces |
| 5-Hole Pin Clamp φ8/5 | 1 Piece |
| 30° Post φ8 | 2 Pieces |
| Semi-Circular Curved Connecting Rod | 1 Piece |
| Carbon Fibre Rod | 2 Pieces |
| Self Drilling Bone Screws 5*150mm | 5 Pieces |

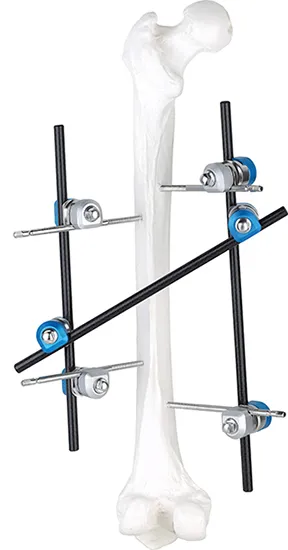

| Femoral Shaft Fixator |
|---|
| Rod To Rod Coupling φ8/8 | 2 Pieces |
| Pin To Rod Coupling φ8/4-5 | 4 Pieces |
| Carbon Fibre Rod (200mm/250mm) | 3 Pieces |
| Self Drilling Bone Screws 5*150mm | 4 Pieces |

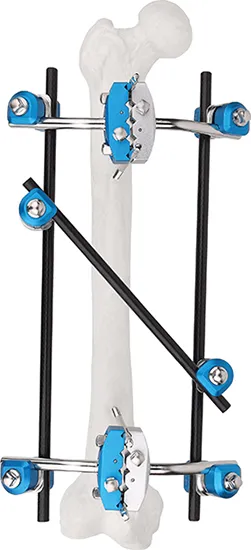

| Half Ring Fixator (Standard) |
|---|
| Rod To Rod Coupling φ8/8 | 6 Pieces |
| 5-Hole Pin Clamp φ8/5 | 2 Pieces |
| 30° Post φ8 | 4 Pieces |
| Carbon Fibre Rod (300mm/250mm) | 3 Pieces |
| Self Drilling Bone Screws 5*150mm | 4 Pieces |

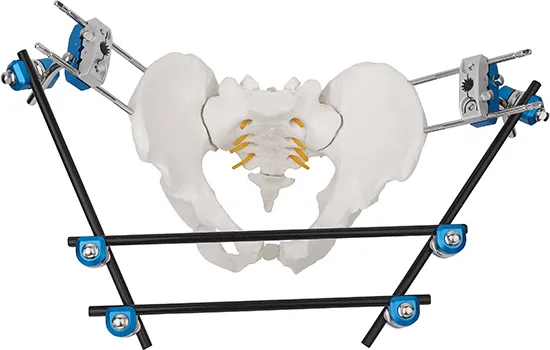

| Pelvic Fixator |
|---|
| Rod To Rod Coupling | 6 Pieces |
| 5-Hole Pin Clamp | 2 Pieces |
| 30° Post | 2 Pieces |
| Carbon Fibre Rod | 4 Pieces |
| Self Drilling Bone Screws 5*150mm | 4 Pieces |

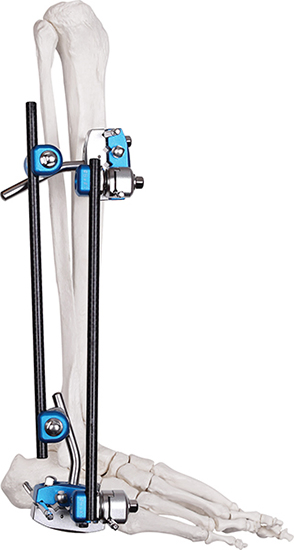

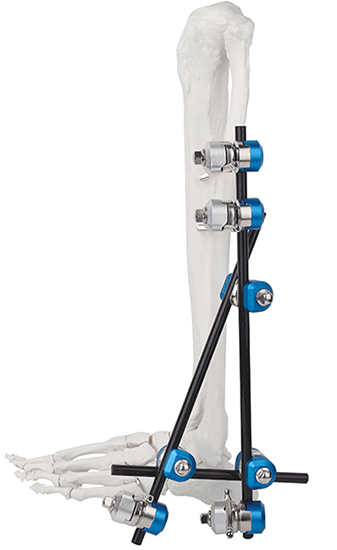

| Ankle Joint Fixator |
|---|
| Rod To Rod Coupling φ8/8 | 3 Pieces |
| Pin To Rod Coupling φ8/4-5 | 4 Pieces |
| Carbon Fibre Rod (250mm/200mm) | 3 Pieces |
| Self Drilling Bone Screws (5*150mm / 4*130mm) | 4 Pieces |
Frequently Asked Questions
What materials are used in this external fixation system?
The system is constructed using medical-grade Titanium Alloy, Stainless Steel, and Carbon Fiber rods to ensure high strength and biocompatibility.
Is the modular fixation system reusable?
Yes, according to the product specifications, the external fixation components are designed to be reusable after proper sterilization.
What are the advantages of using Carbon Fiber rods?
Carbon Fiber rods are radiolucent, which significantly improves the clarity of fracture vision under X-ray and other imaging modalities during and after surgery.
Which types of fractures can be treated with this system?
The system is highly versatile and designed to address complex fractures and soft tissue loss in the tibia, femur, pelvis, and ankle joint.
How does the "snap-fit" design benefit surgeons?
The snap-fit design allows for streamlined operation, enabling surgeons to assemble and adjust the frame quickly, which reduces total surgical time.
What certifications does the product hold?
The product is fully certified with CE and ISO13485 standards, meeting international requirements for medical device safety and quality.
