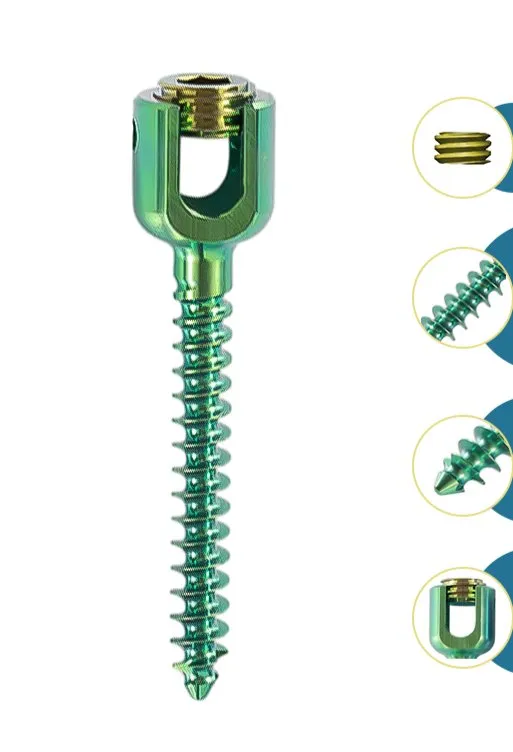

Multiple curve correction and derotation options with cortical/cancellous threads ensure strong, reliable fixation. Self-tapping, dual-lead, optimized thread form for fast delivery and superior pull-out resistance. The strong head body handles heavy loads in kyphotic and scoliotic curves.
| Spinal Pedicle Screw System (6.0mm System) Specification | |||||
|---|---|---|---|---|---|
| Type | Diameter & Length | Type | Diameter & Length | Type | Diameter & Length |
| Monoaxial Pedicle Screw | Φ4.5×25mm to Φ7.0x55mm | Monoaxial Reduction Screw | Φ5.0×30mm to Φ7.0x50mm | Polyaxial Pedical Screw | Φ4.5×20mm to Φ7.0x50mm |
| Polyaxial Reduction Screw | Φ5.0×30mm to Φ6.5×40mm | Iliac Pedicle Screw | 7.5*65 to 8.0*80 | Rod / Crosslink | Φ6.0×100mm to 400mm |

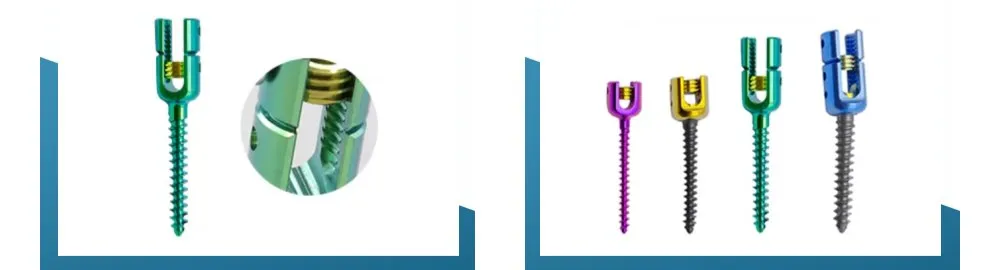

Extended tabs with notches on both sides facilitate tab removal and provide a smooth break-off surface.

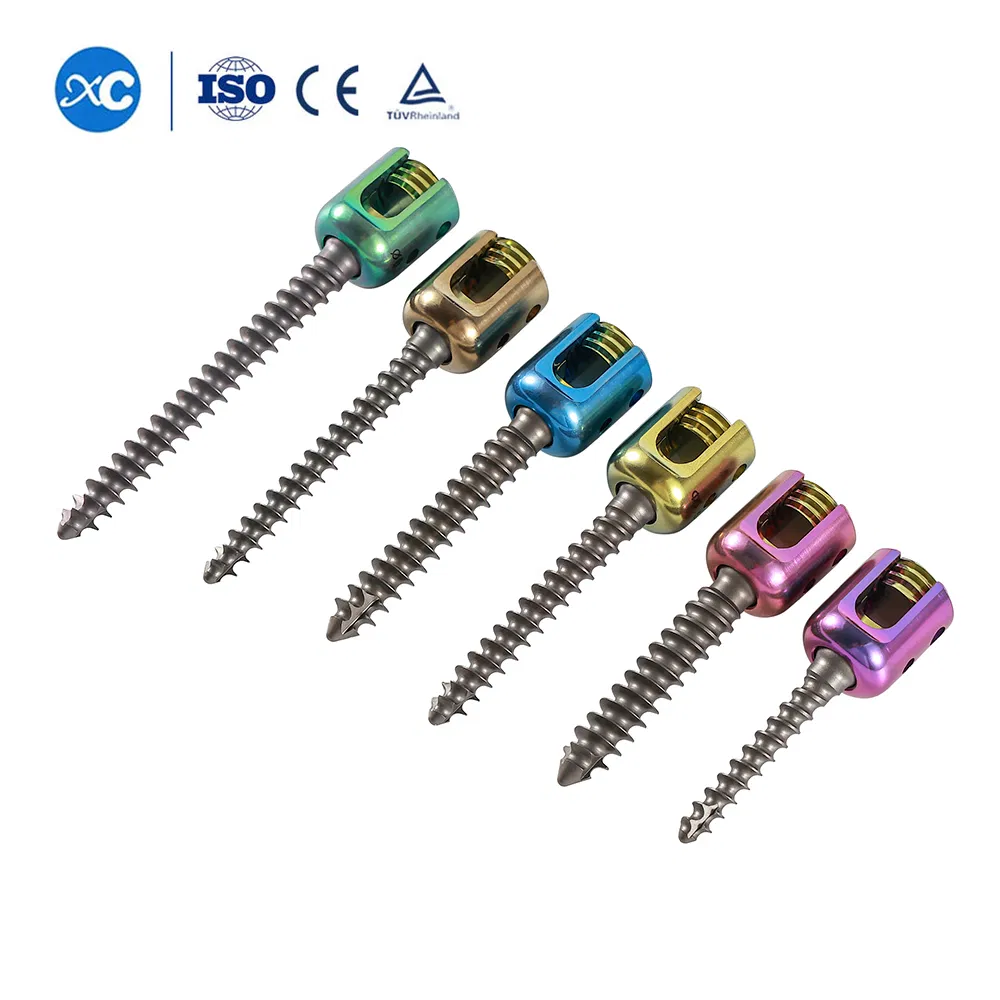

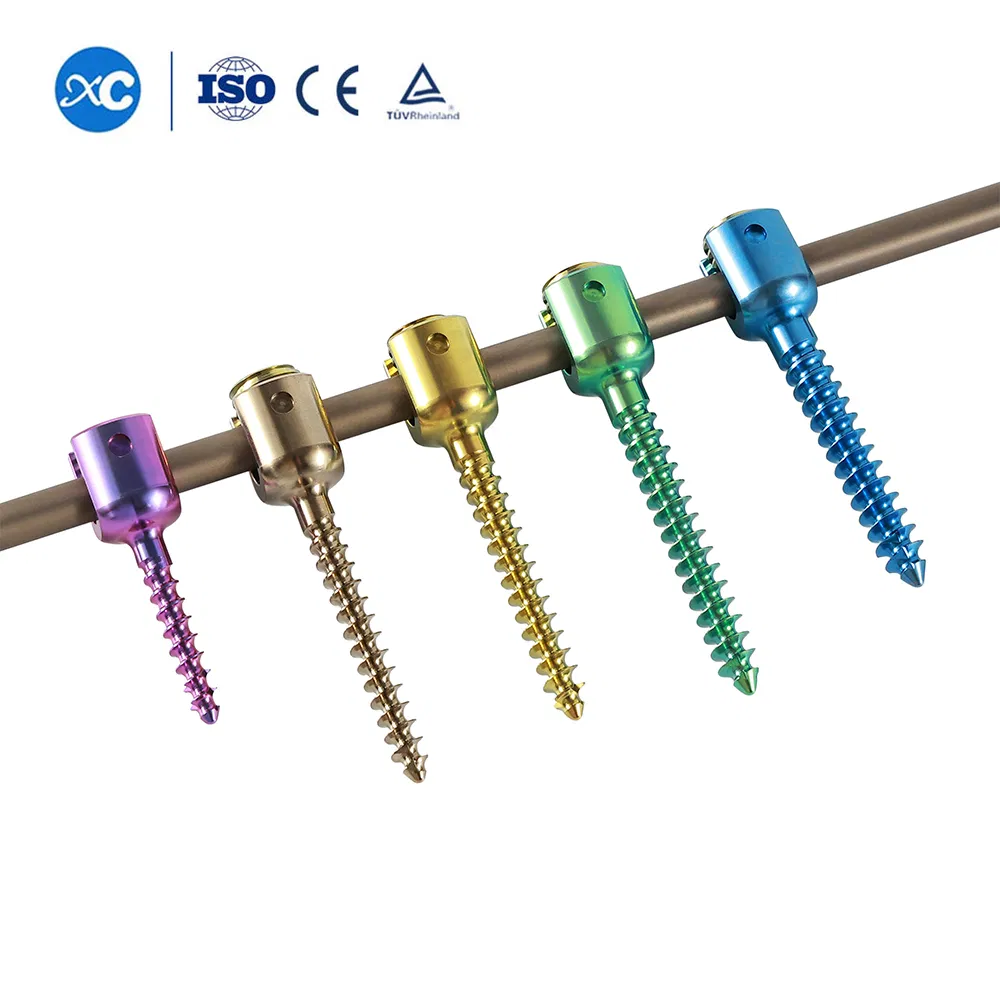

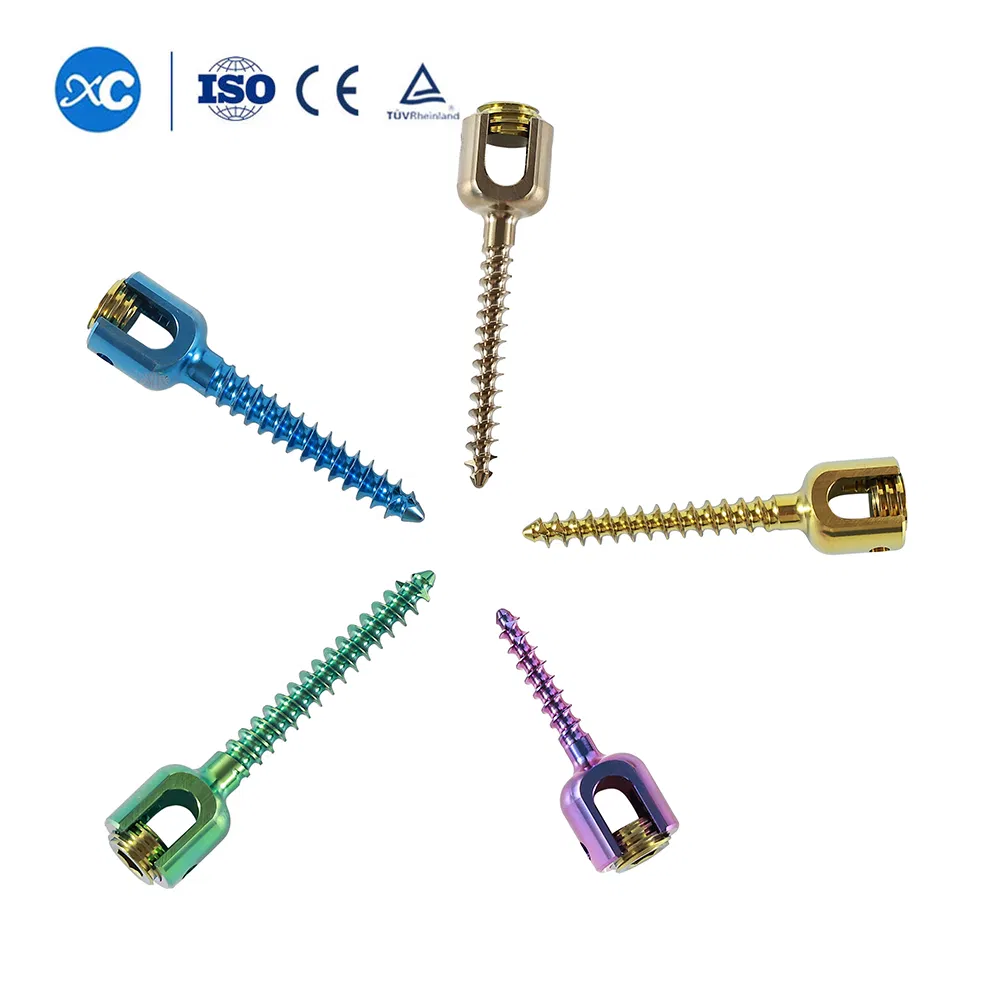

Different screw sizes are color-coded for easy identification during surgical operations.

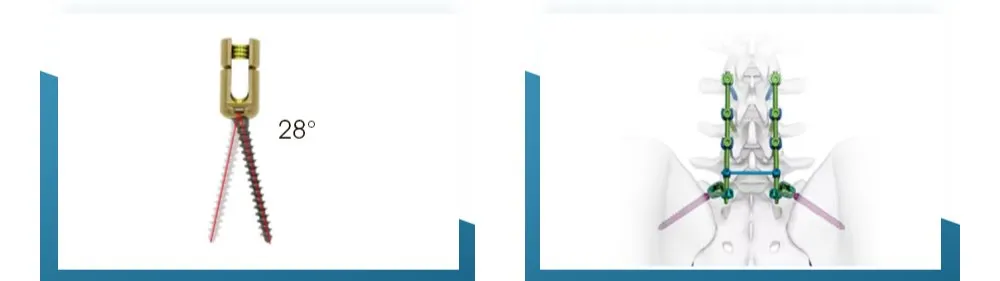

The maximum angle of the polyaxial pedicle screw is 28 degrees, facilitating the placement of screws and rods.
Provides Iliac Screws in large diameters for sacroiliac reduction and internal fixation.
