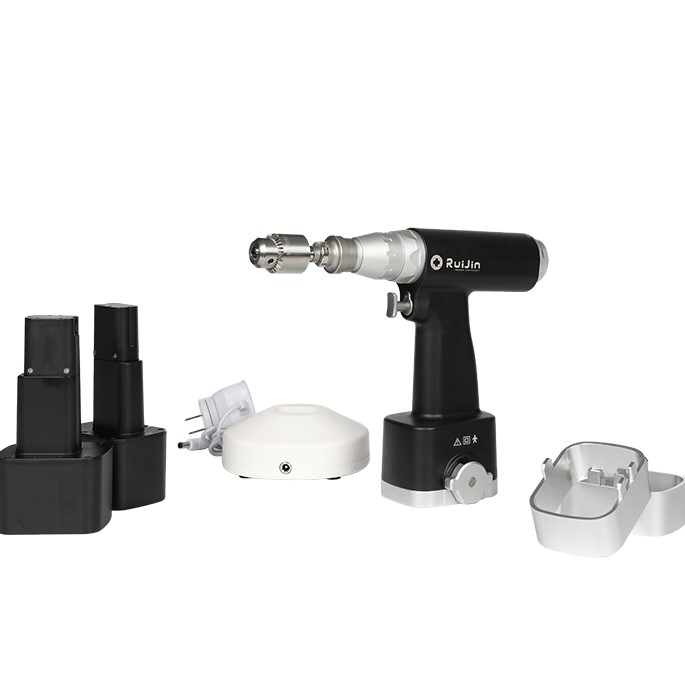

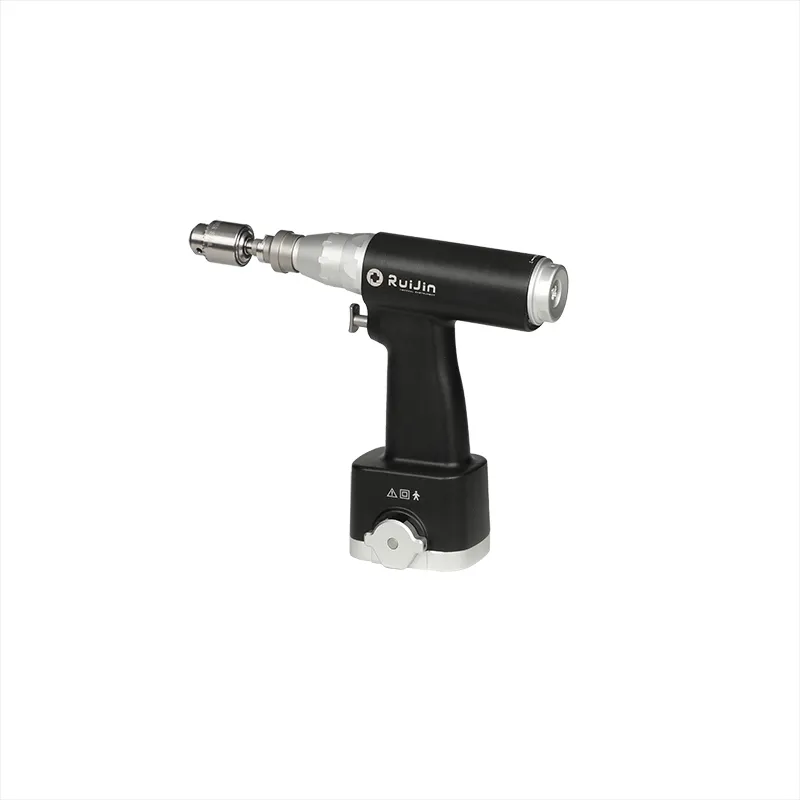

Medical drill tools equipment orthopedic low-speed endoprosthesis total Arthroplasty replacement
All medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, neurosurgery operations. K wires or be used in intermediary interlocking nail surgery or arthroscopic surgery. Whole unit is autoclavable, imported motor ensure low noise, high speed, high proper alignment, long service life, the machine is warranty for 12 months. Can adopt various flexible reamer, chuck easily during the process of surgery.
| Working Voltage | 14.4V |
| Output Power | 130W |
| Unit rise in Temperature | ≤ 25ºC |
| Input Voltage | AC 220V, 50Hz |
| Output Voltage | 14.4V, 900mA |
| Charger Input Power | 30VA |
| Charging time | 3 hours |
| Speed | 300r/min |
| Non-loaded noise | 63dB(A) |
| Radial run-out | 0.5mm |
| Torque | 33000gcm |

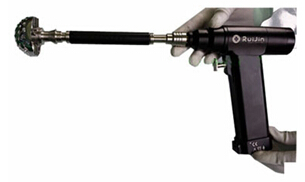

Hip joint drill with various adaptor options: Stryker, AO, Hudson, Synthes, etc.

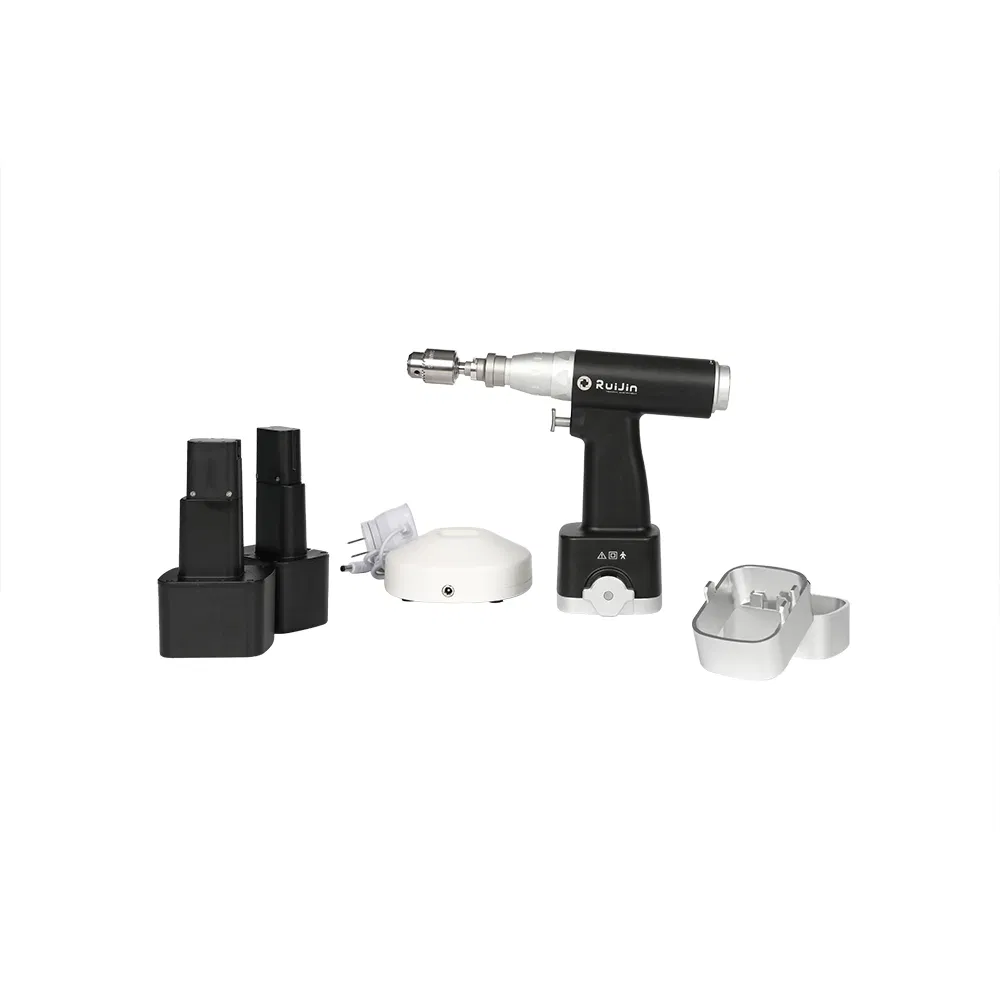

Includes 2pcs batteries

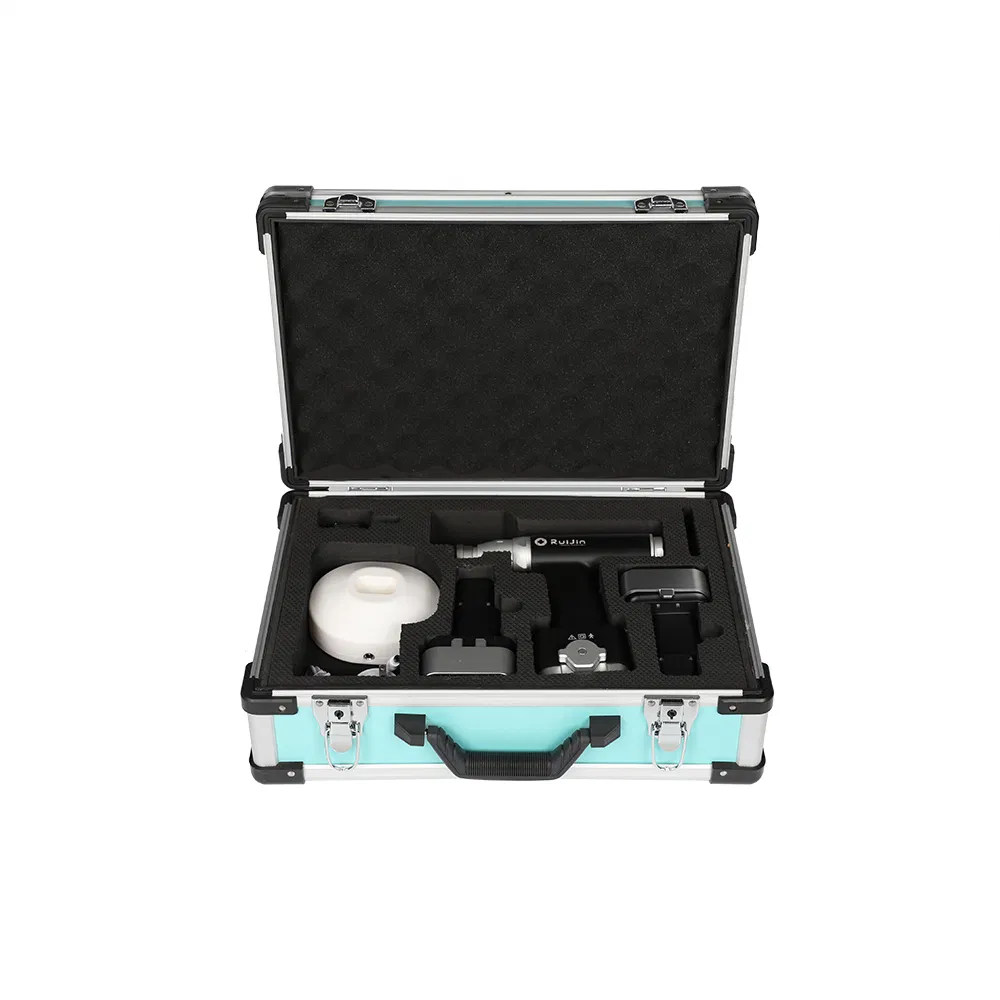

Aluminum case protection

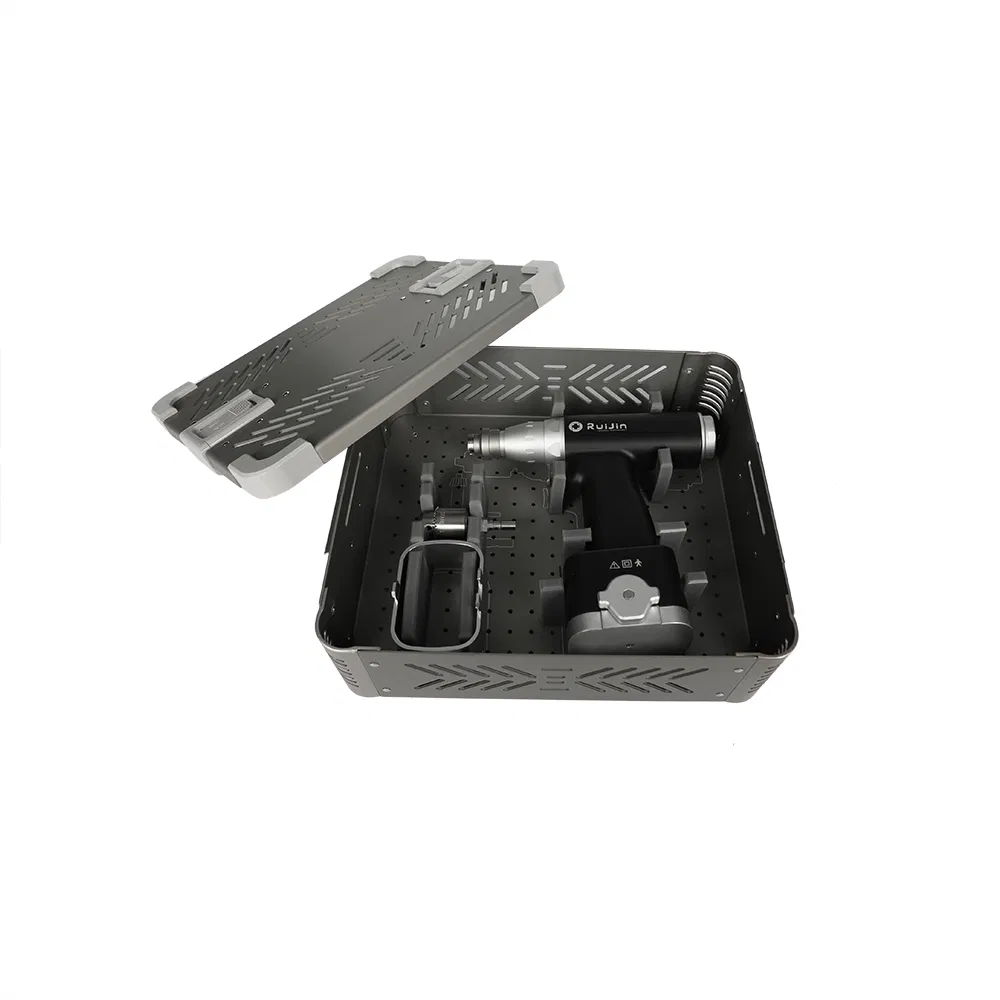

Special sterilization tray

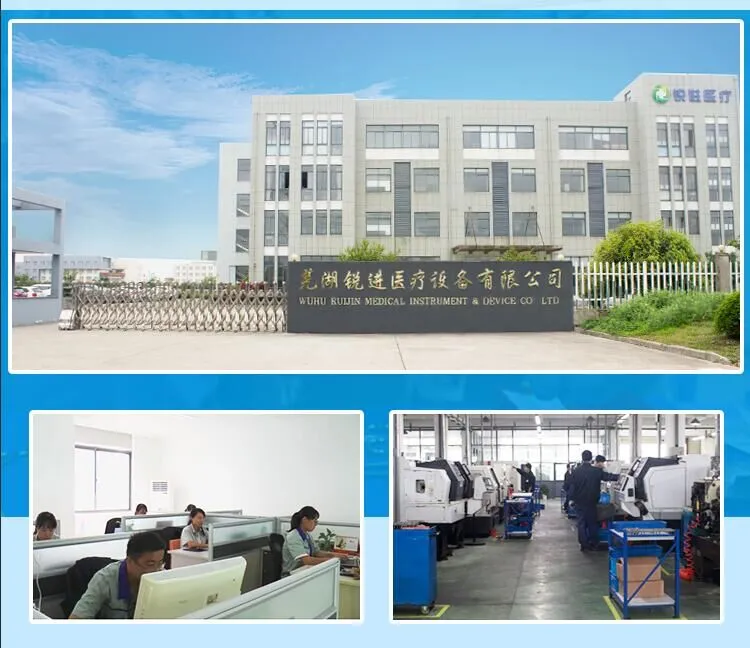

Established in 2007, we are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, used in Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery.
| 1. The device is forbidden to be demolished by non-professionals. |
| 2. Compatible with electricity source 110V/60Hz - 220V/50Hz. |
| 3. The battery needs to be removed from the handpiece when not in use to prevent discharge. |
| 4. The battery cannot be disinfected; the battery compartment should be dry after sterilization. |
| 5. The sterilization temperature must be lower than 135°C to avoid motor damage. |
