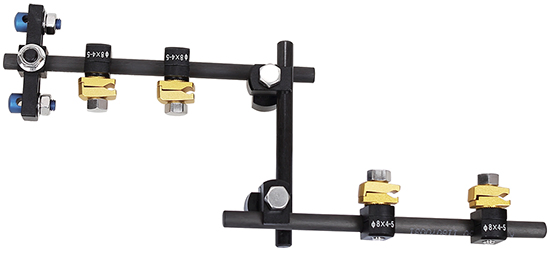

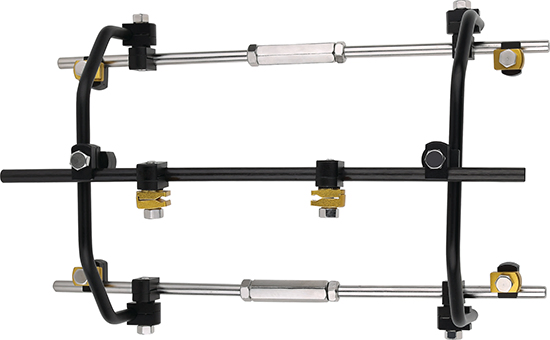

External Fixation Orthopedic Bone Fixator Clamp and Rod

1 / 5

External Fixation Orthopedic Bone Fixator Clamp and Rod

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Send Inquiry

Product Description

Basic Information

Model NO.

External Fixation

Feature

Reusable

Certification

CE, ISO13485

Color

White & Black

Usage

Bone Fixation

Material Type

Titanium Alloy & Stainless Steel

Product Name

External Fixator

Transport Package

Box

Specification

50*50*50CM

Origin

China

HS Code

90211000

Capacity

500,000 Pieces/Year

Product Description

External Fixator -- Modular Fixation External Fixation System

External Fixation Orthopedic Bone Fixator

◈Distinguished by cutting-edge technology and user-friendly operation.

◈Allows independent arrangement of bone screws for proximal and distal fractures.

◈Revolutionary snap-fit design for streamlining procedures.

◈Premium medical-grade aluminum carbon fiber for superior clarity.

◈Optimal stability and flexibility for dynamic orthopedic needs.

◈Compact frame for easy handling and robust performance.

◈Designed for complex fractures and soft tissue loss.

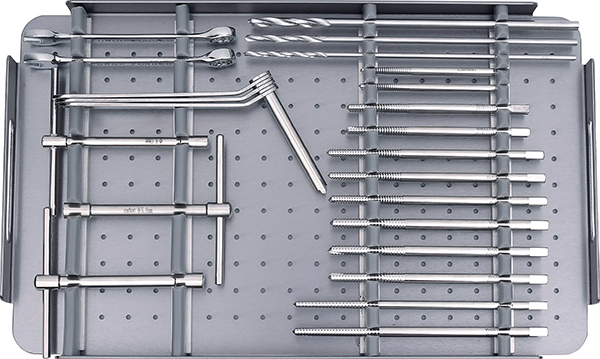

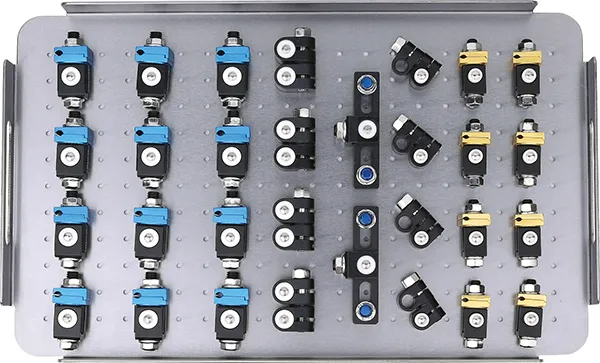

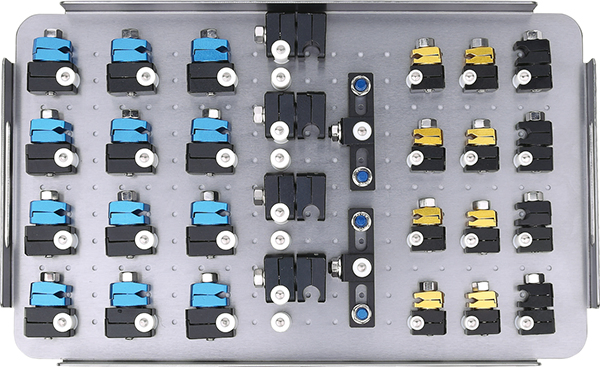

System Components

Description	Specification	Qty
Pin To Rod Coupling	φ8/4	8
Rod To Rod Coupling	φ8/8	4
Pin To Rod Coupling	φ11/5-6	12
Rod To Rod Coupling	φ11/11	4
T Clamp	φ11/5	2
Bone Screws (Various)	φ4 - φ6 (90mm-150mm)	22

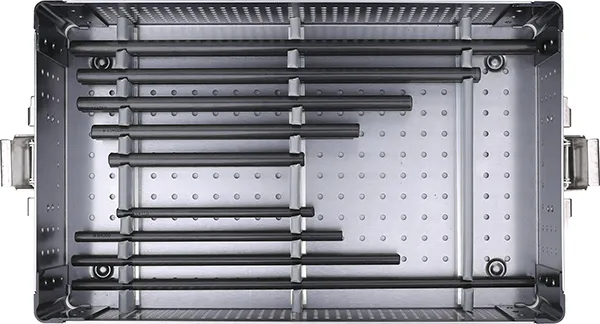

Carbon Fibre Rod	φ11 (150mm-350mm)	10
Carbon Fibre Rod	φ8 (150mm-300mm)	8
Drill Bits	φ2.8, φ3.8, φ4.8	3
Tapered Trocar & Guide	φ3, φ4, φ5, φ6	1
T-Wrench	φ4, φ5, φ6	3
Combined Spanner	10mm	2

Specialized Modular Configurations

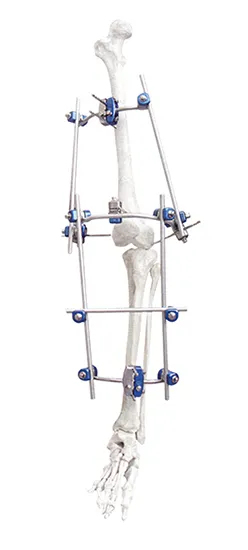

Knee Joint Fixator Configuration
Rod to Rod Coupling φ8/8	10 Pcs
Pin To Rod Coupling φ8/4-5	3 Pcs
5-Hole Pin Clamp φ8/5	2 Pcs
Carbon Fibre Rods (Various)	5 Pcs
Bone Screws 5*150mm	7 Pcs

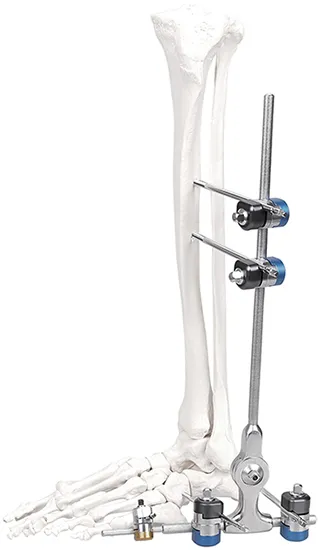

Ankle Joint Fixator Configuration
Ankle Joint Mobilizer φ8	1 Piece
Rod To Rod Coupling φ8/4-5	4 Pieces
Bone Screws 5*150mm	4 Pieces
Bone Screws 3*80mm	1 Piece

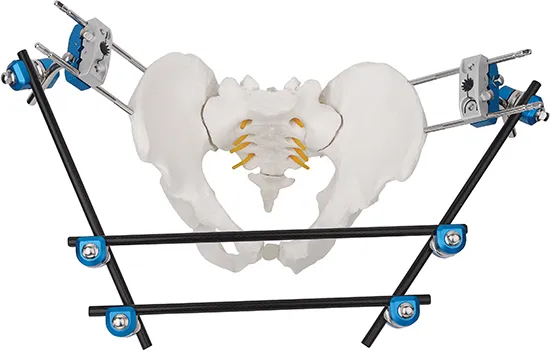

Pelvic Fixator Configuration
Rod To Rod Coupling	6 Pieces
5-Hole Pin Clamp / 30° Post	4 Pieces
Carbon Fibre Rod	4 Pieces
Bone Screws 5*150mm	4 Pieces

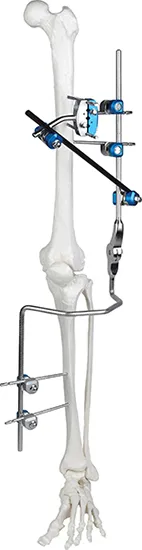

Knee Joint Mobilizer Type

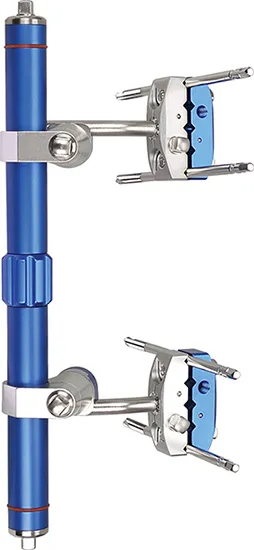

Micro-Motion Type Fixator

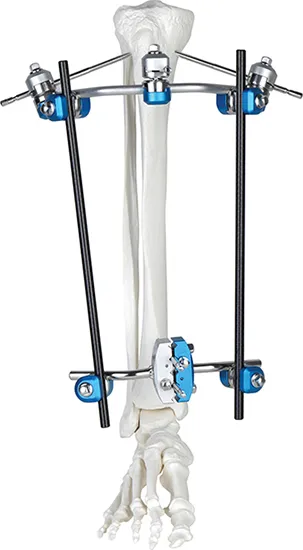

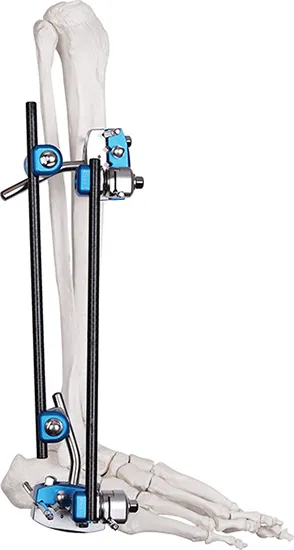

Standard Ankle Joint Type

Frequently Asked Questions

What materials are used in the External Fixator system?

The system utilizes high-quality Titanium Alloy and Stainless Steel for mechanical components, combined with medical-grade Carbon Fiber rods for superior radiolucency and strength.

Is the external fixation system reusable?

Yes, the system is designed to be reusable, providing a cost-effective solution for orthopedic bone fixation procedures.

What certifications does the product hold?

Our External Fixators are fully certified with CE and ISO13485 standards, ensuring compliance with international medical quality requirements.

Which anatomical areas can be treated with this modular system?

The modular design allows for specialized configurations for the Knee Joint, Ankle Joint, Pelvic region, and Tibia/Perone fractures.

What is the advantage of the snap-fit design?

The snap-fit design simplifies the assembly process during surgery, significantly saving time and allowing for independent arrangement of bone screws to suit complex fracture patterns.

Can the carbon fiber rods withstand imaging?

Yes, the medical-grade aluminum carbon fiber rods enhance fracture visualization under X-ray or fluoroscopy, ensuring diagnostic accuracy during and after the procedure.
