Pitch-row of reconstruction plate is a specialized design for fixation during operation, improve the stress concentration phenomenon in the specific area and fatigue strength.
Locking reconstruction plate is like built-in external fixation support, reduce mandible bite force, get an ideal fixation even on osteoporotic mandible.
One hole select two kinds of screw: Locking maxillofacial reconstruction anatomical plate can realize two fixed methods: locked and non-locked. Locking screw fixed bone block and at the same time firm lock the plate, like built-in external fixation support. Non-locking screw can make an angle and compression fixation.
| Model | Order No. | Item No. | Specification |
|---|---|---|---|

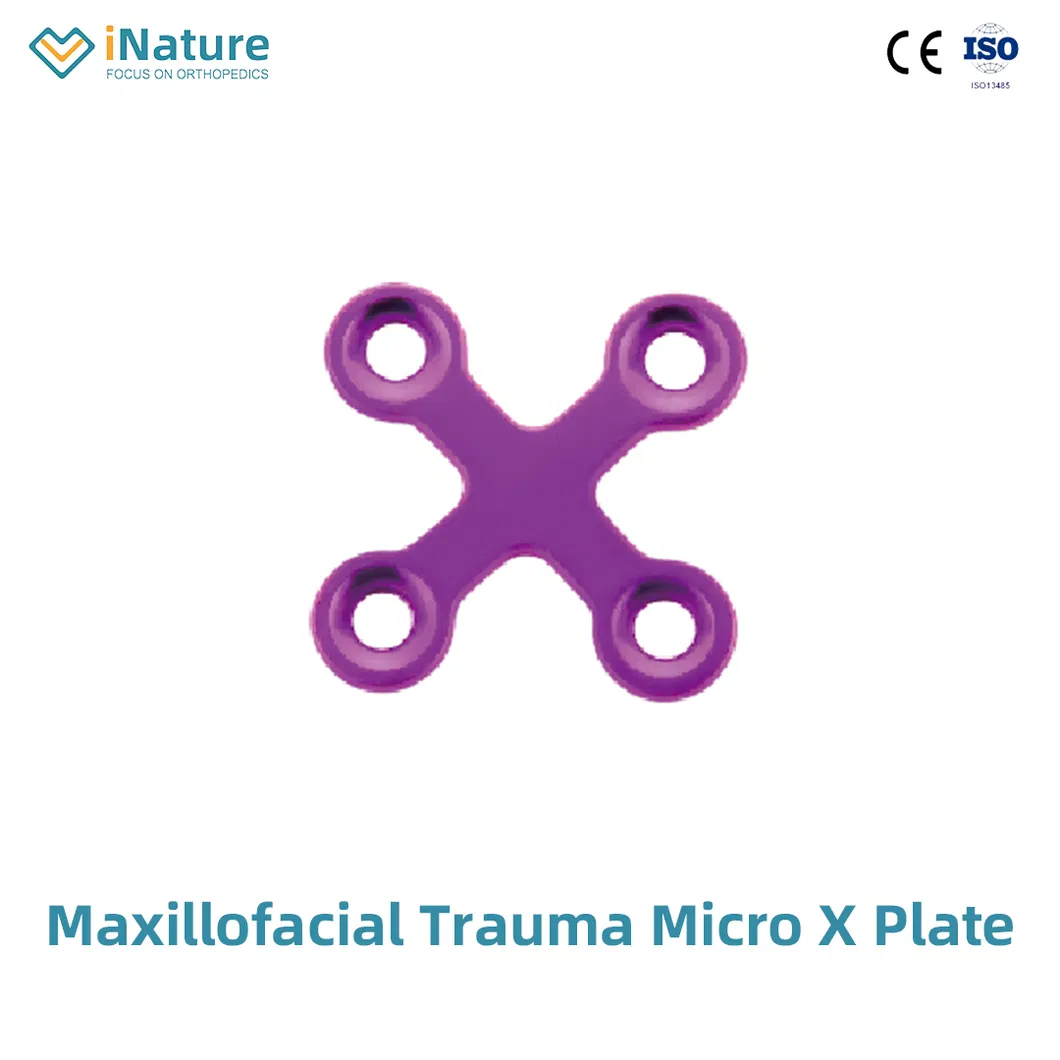

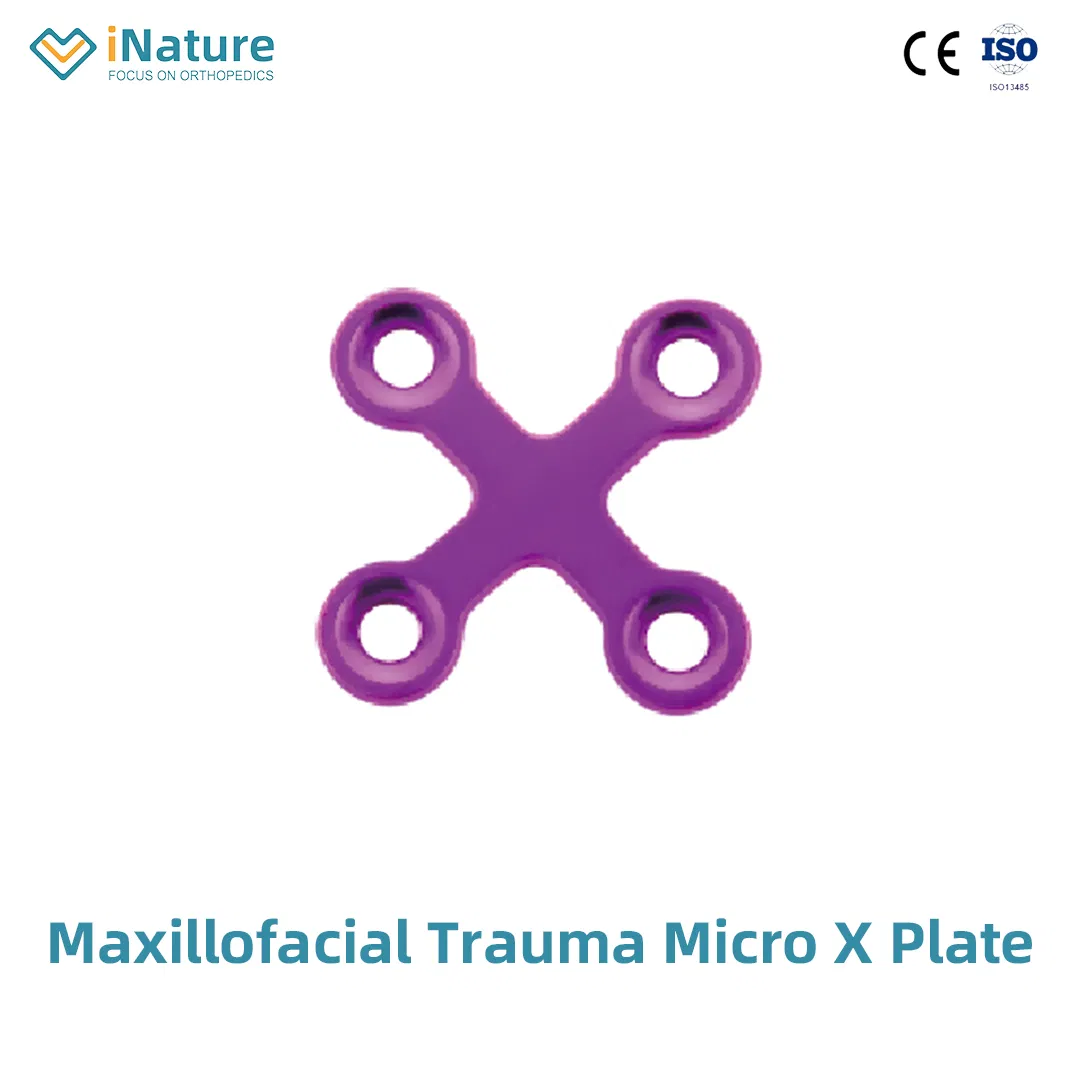

| Maxillofacial Micro Locking X-Plate | 10.01.02.04021000 | 0666 | 4 holes, 0.6mm, 14mm |

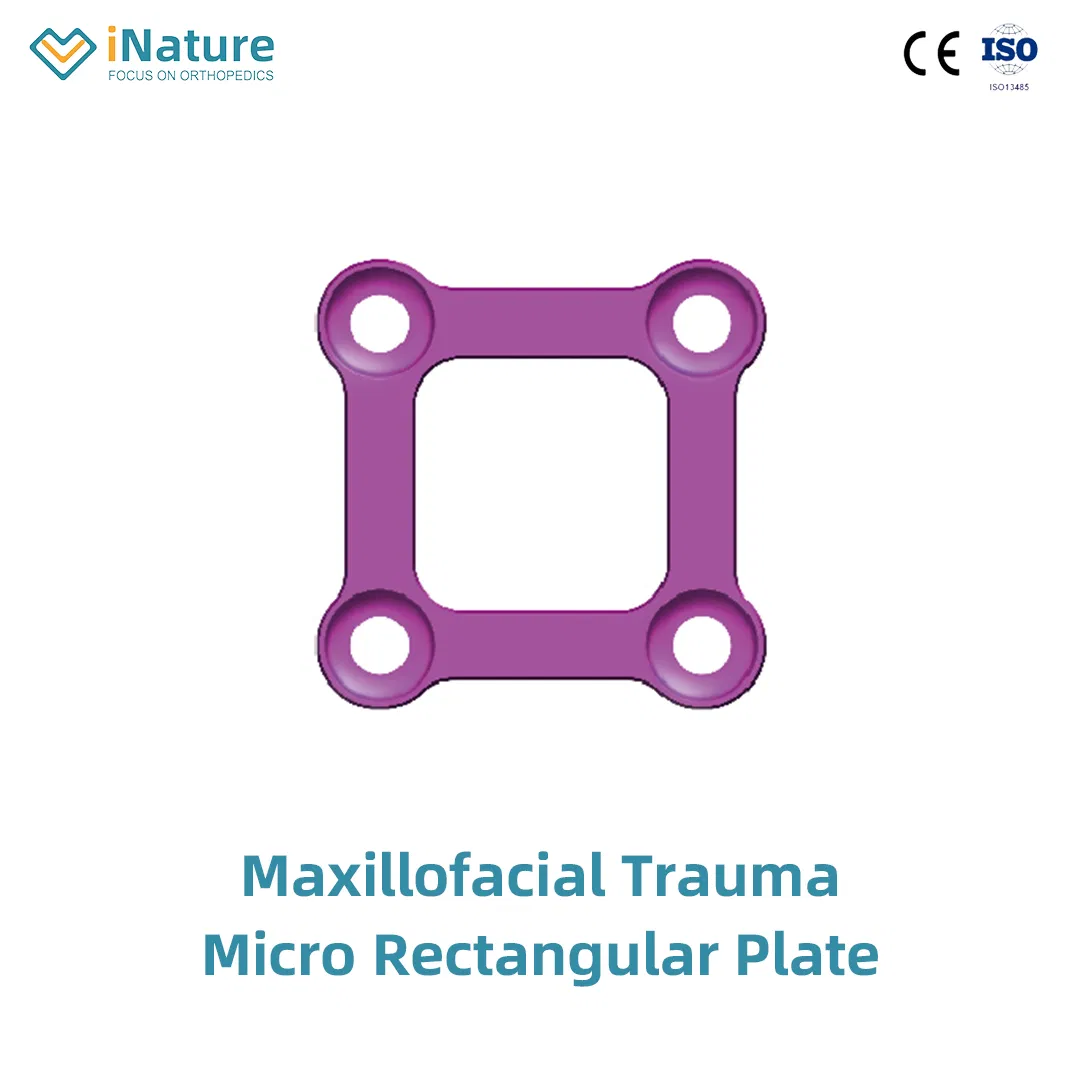

| Maxillofacial Micro Locking Rectangular Plate | 10.01.02.04023000 | 0683 | 4 holes, 0.6mm, 14*14mm |

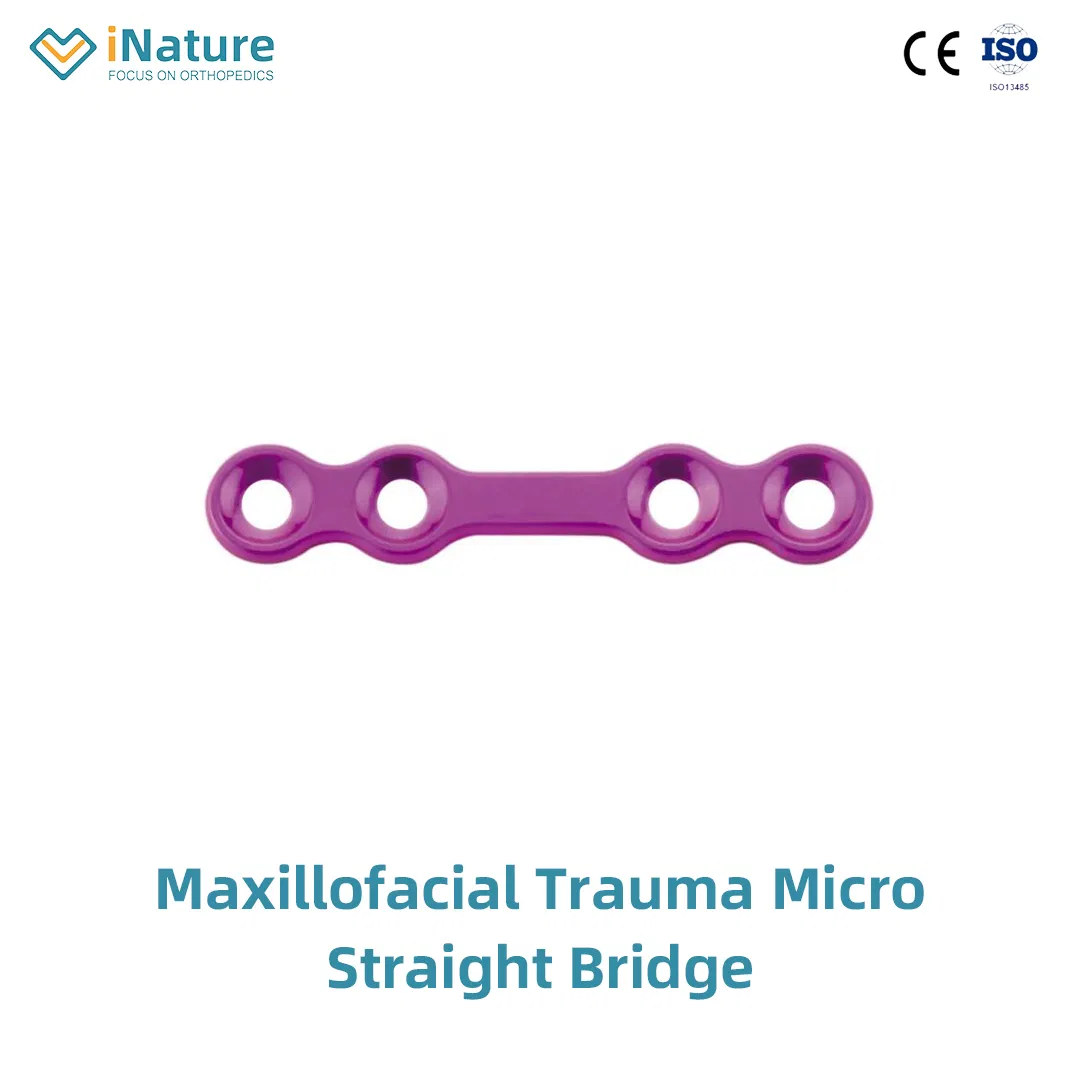

| Maxillofacial Micro Locking Straight bridge Plate | 10.01.02.04011000 | 0901 | 4 holes, 0.6mm, 20mm |

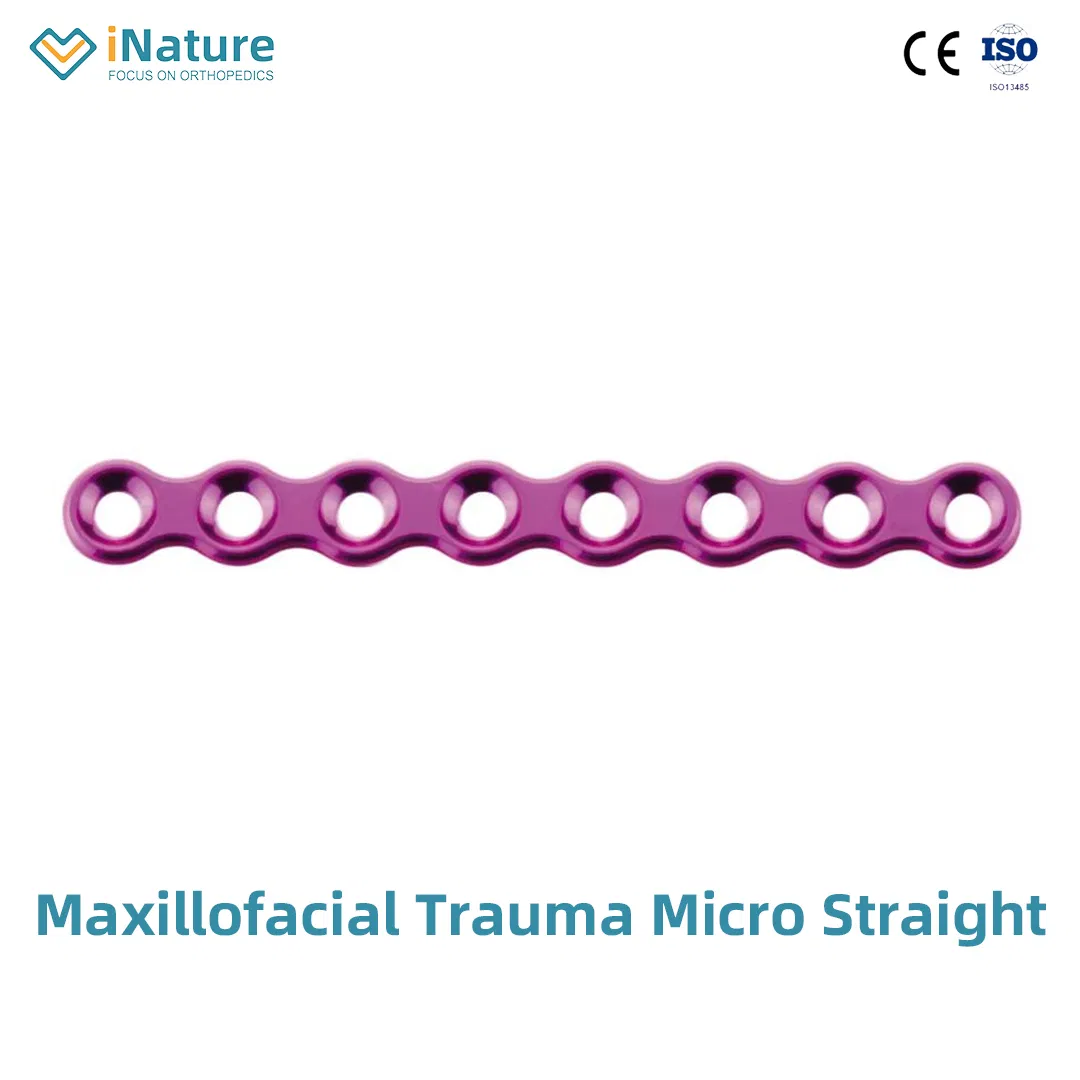

| Maxillofacial Micro Locking Straight Plate | 10.01.02.06011000 | 0902 | 6 holes, 0.6mm, 24mm |
| Maxillofacial Micro Locking Straight Plate | 10.01.02.08011000 | 0903 | 8 holes, 0.6mm, 32mm |

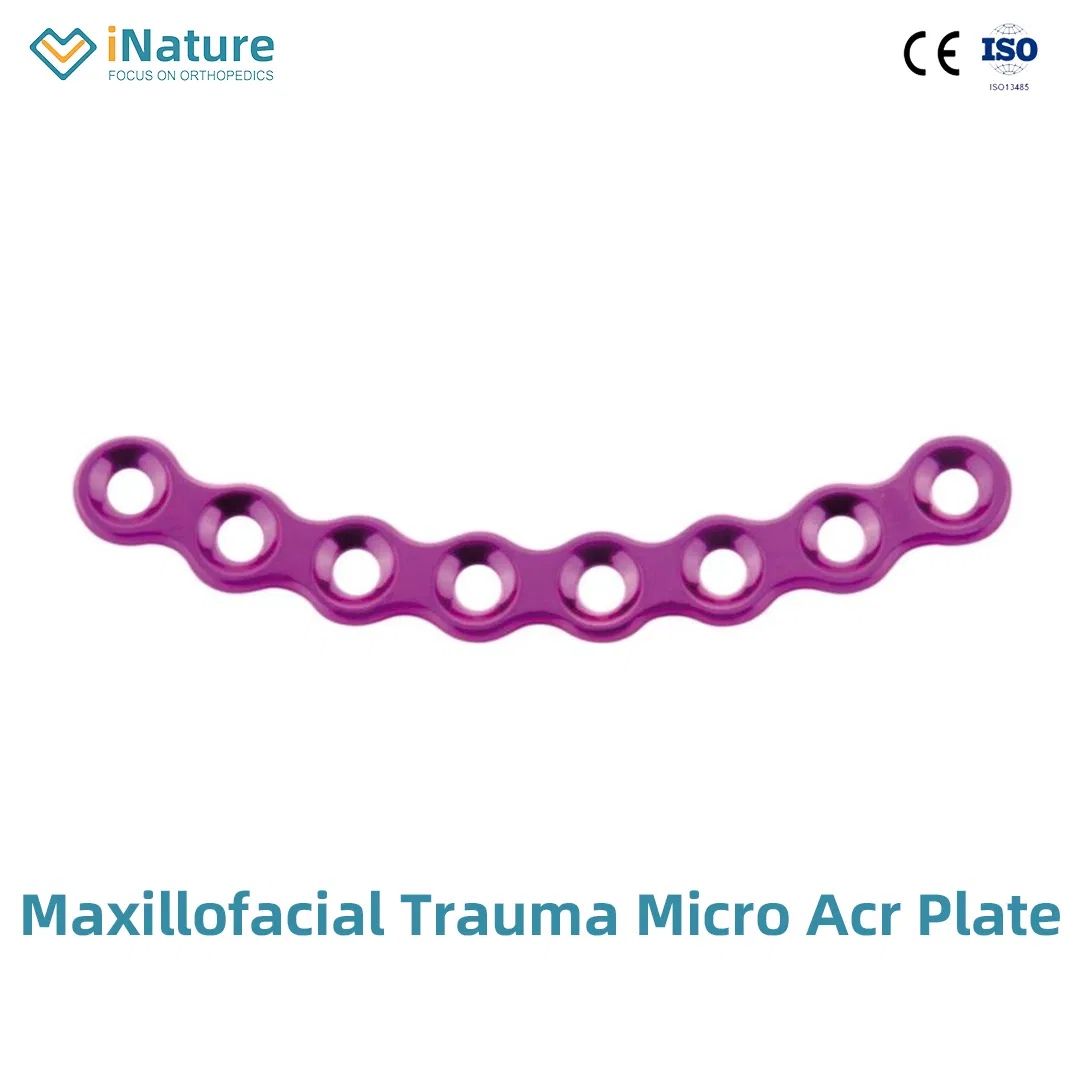

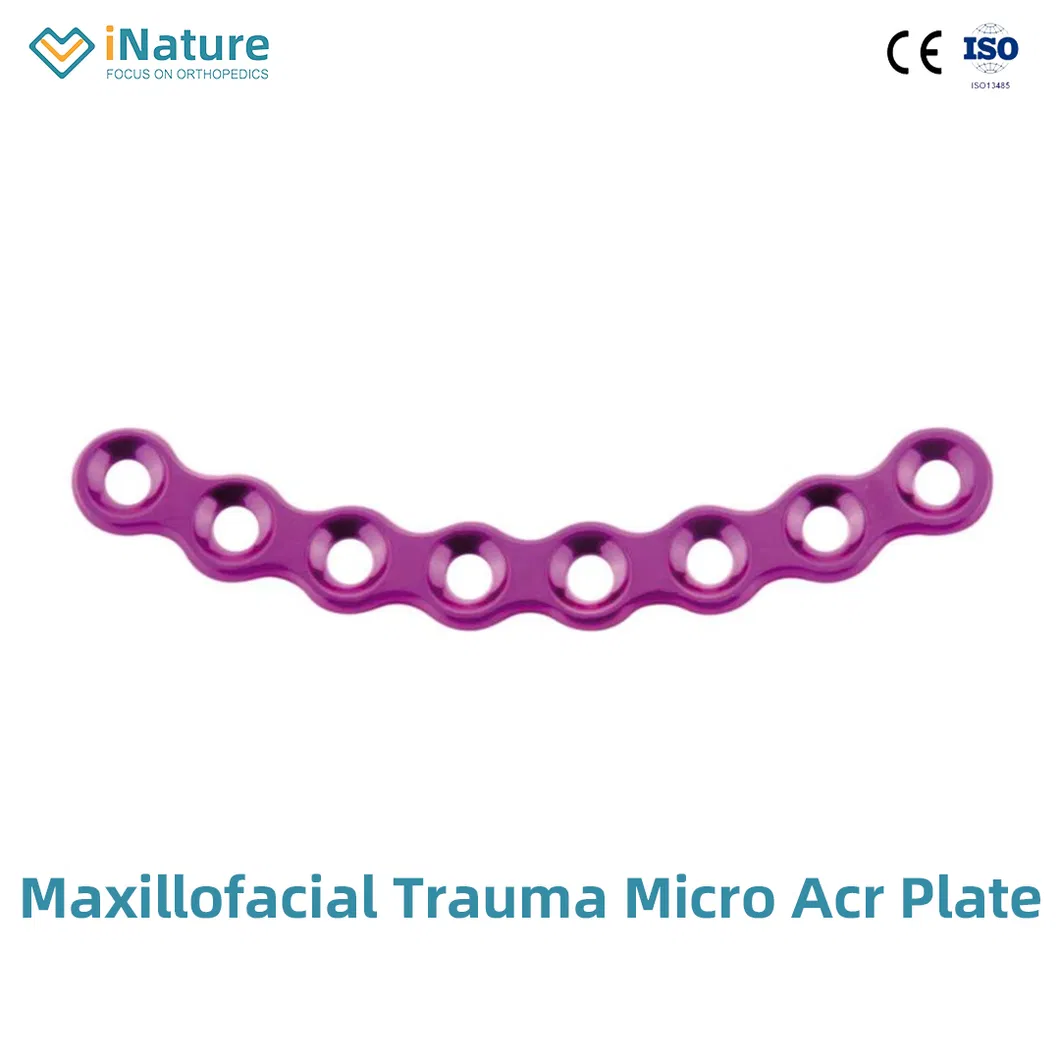

| Maxillofacial Micro Locking Arc Plate | 10.01.02.06013000 | 0906 | 6 holes, 0.6mm, 24mm |

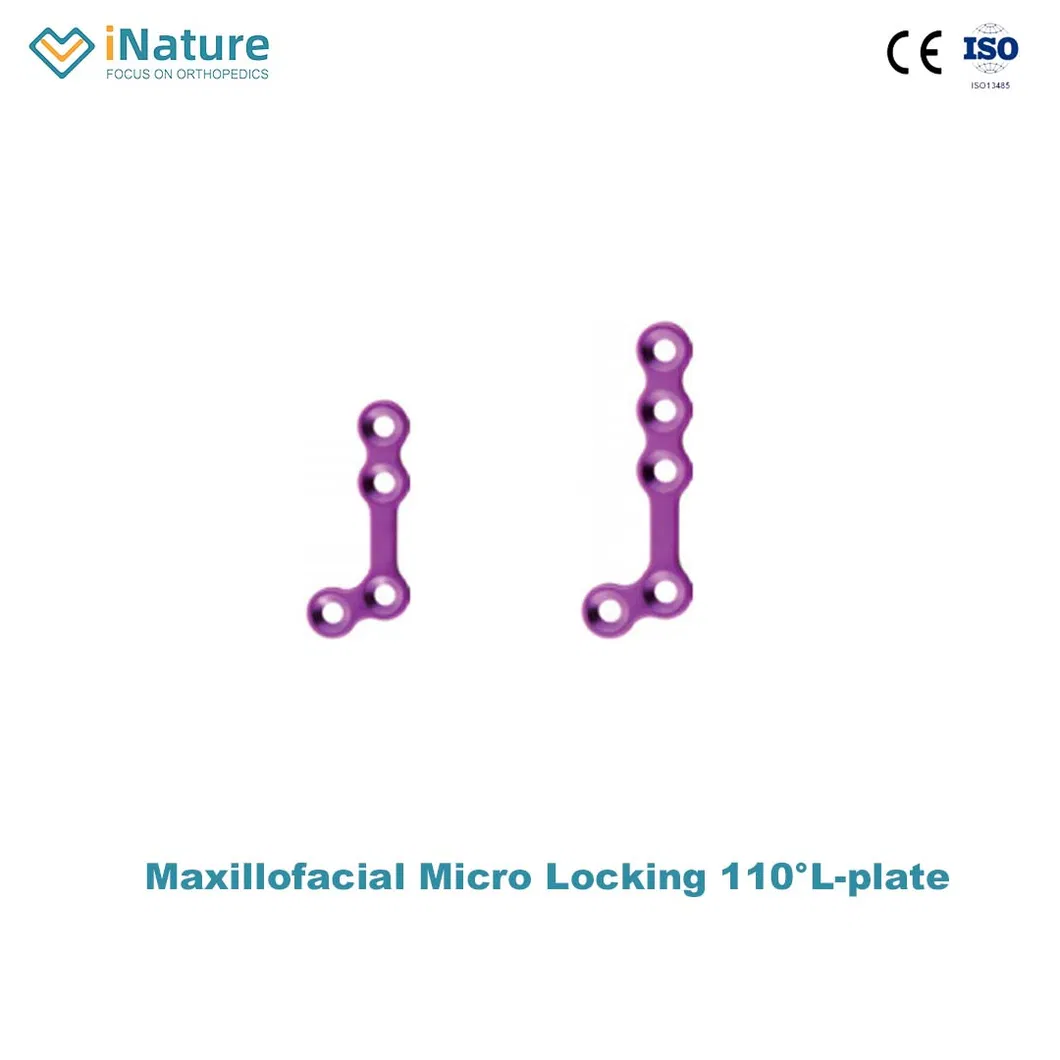

| Maxillofacial Micro Locking 110°L-plate | 10.01.02.04016000 | 0911 | 4 holes, 0.6mm, 16mm |
*All the prices are only for reference. Exact price will be based on the latest quotation.
