Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.SGM-IIK
ApplicationOrthopedic Surgery
MaterialTitanium Alloy
Product NameProximal Femoral Nail System
Matched InstrumentsGA1X Instruments Set
IndicationsProximal Femoral Fracture
OEM/ODMAvailable
OriginChina

Product Description

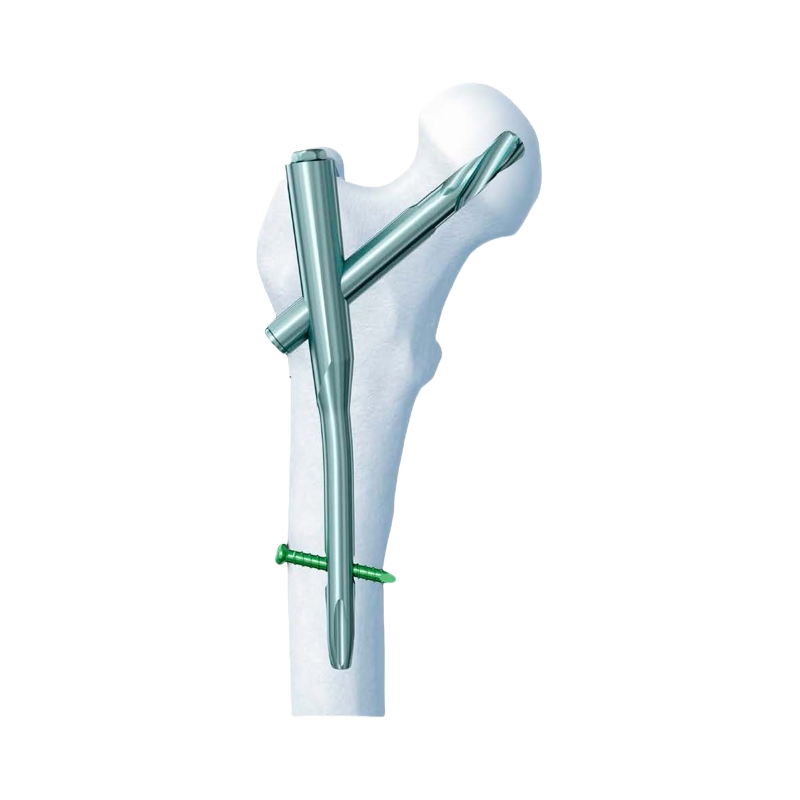

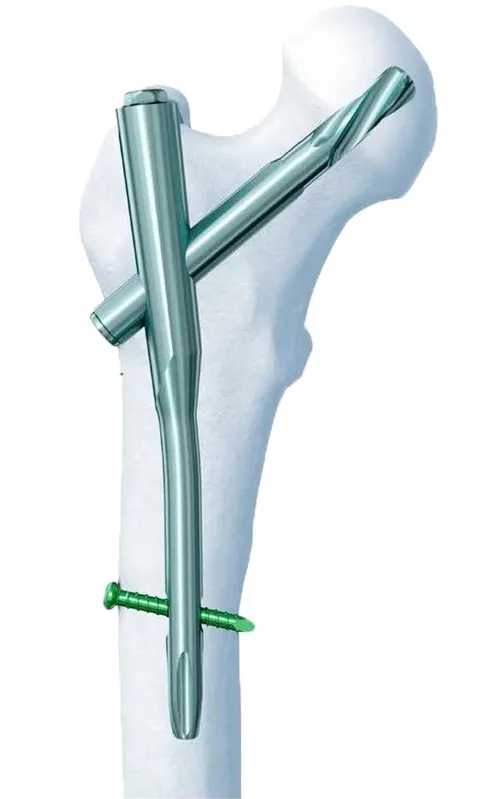

Proximal Femoral Nail System

Product Key Features:

  • Medial-lateral angle of 5°, allows for placement from the top of the greater trochanter.
  • Flattened proximal lateral design facilitates easier nail insertion.
  • Engineered for optimal stress distribution across the bone structure.
  • Elastic tip and specialized groove design facilitate smoother insertion.
  • Prevents stress concentration at the distal end of the implant.

Clinical Indications:

Standard PFNA
  • Intertrochanteric fractures (31-A1, 31-A2)
  • Reverse intertrochanteric fractures (31-A3)
  • High position Subtrochanteric fractures
Long PFNA
  • Low and extended subtrochanteric fractures
  • Ipsilateral trochanteric fractures
  • Multiple proximal femur fractures
  • Pathological fractures
📋

Technical Specifications

Product Name Technical Specifications

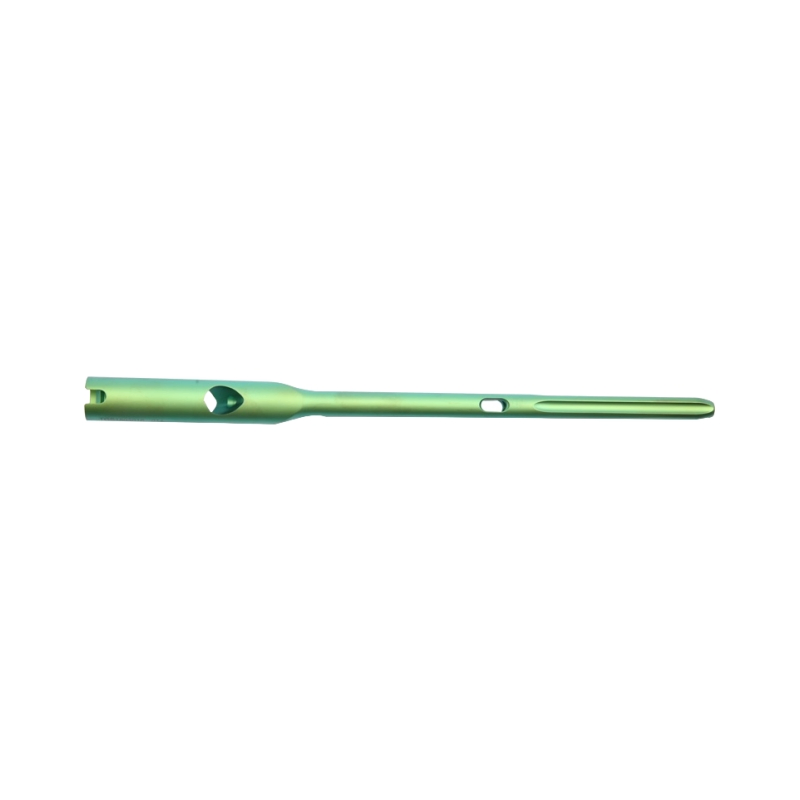

Proximal Femoral Nail Diameter: 9.0/10.0/11.0/12.0mm | Angle: 130° | Length: 170-240mm

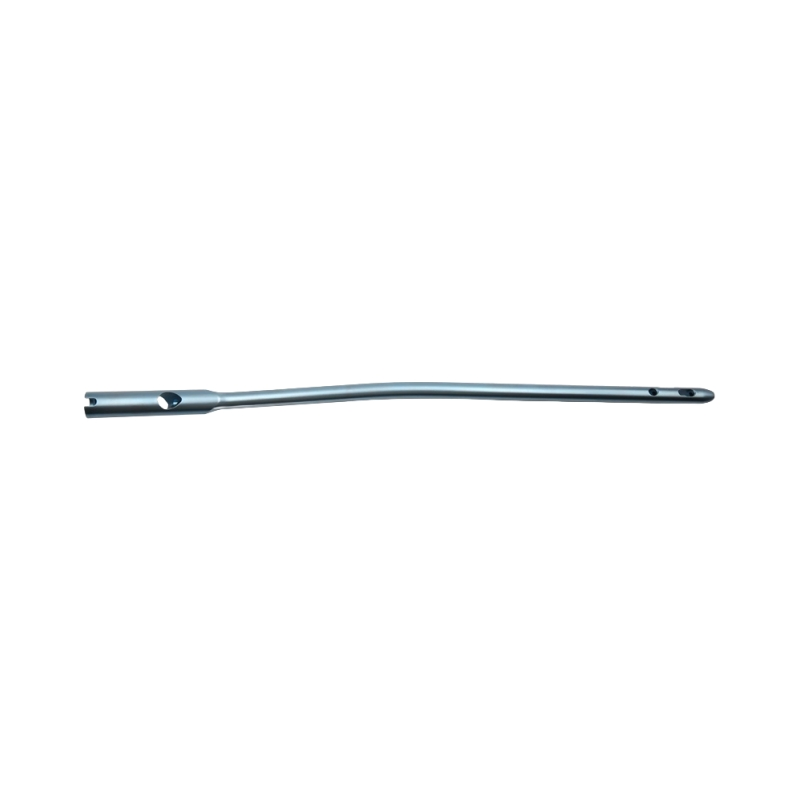

Proximal Femoral Nail, Long Diameter: 9.0/10.0/11.0mm | Angle: 130° | Left/Right | Length: 320-420mm

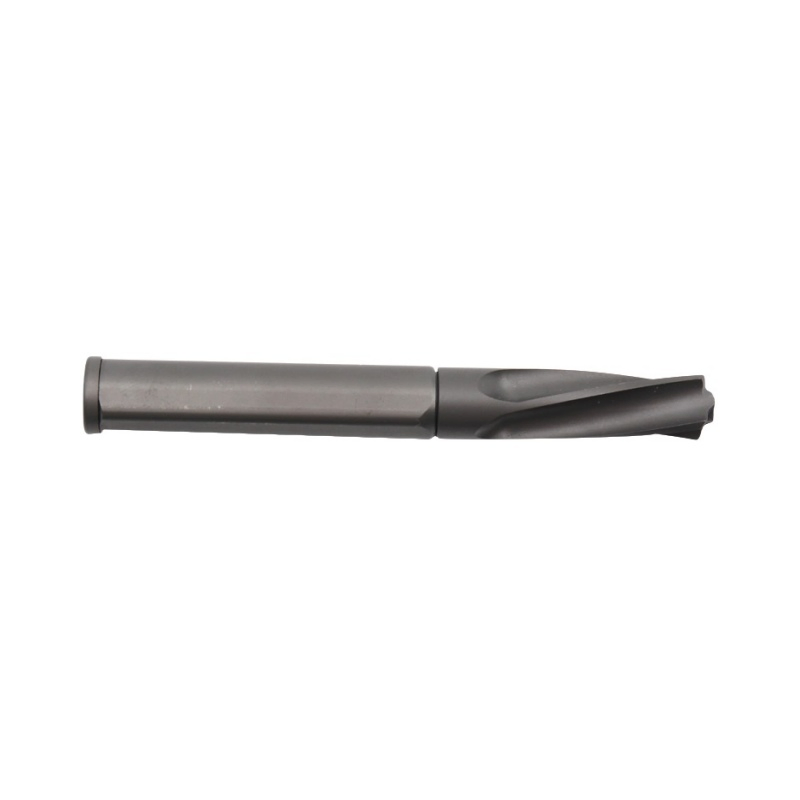

Helical Blade Diameter: 10.5mm | Length: 70-120mm

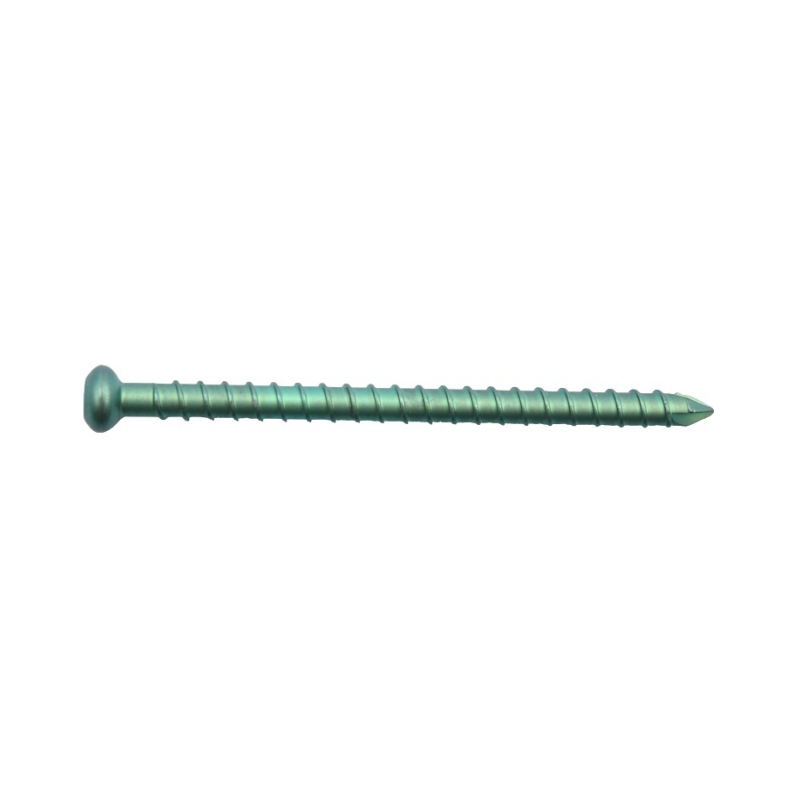

Locking Bolt Diameter: 4.9mm | Length: 30-72mm
End Cap Diameter: 10mm | Length: 15-35mm

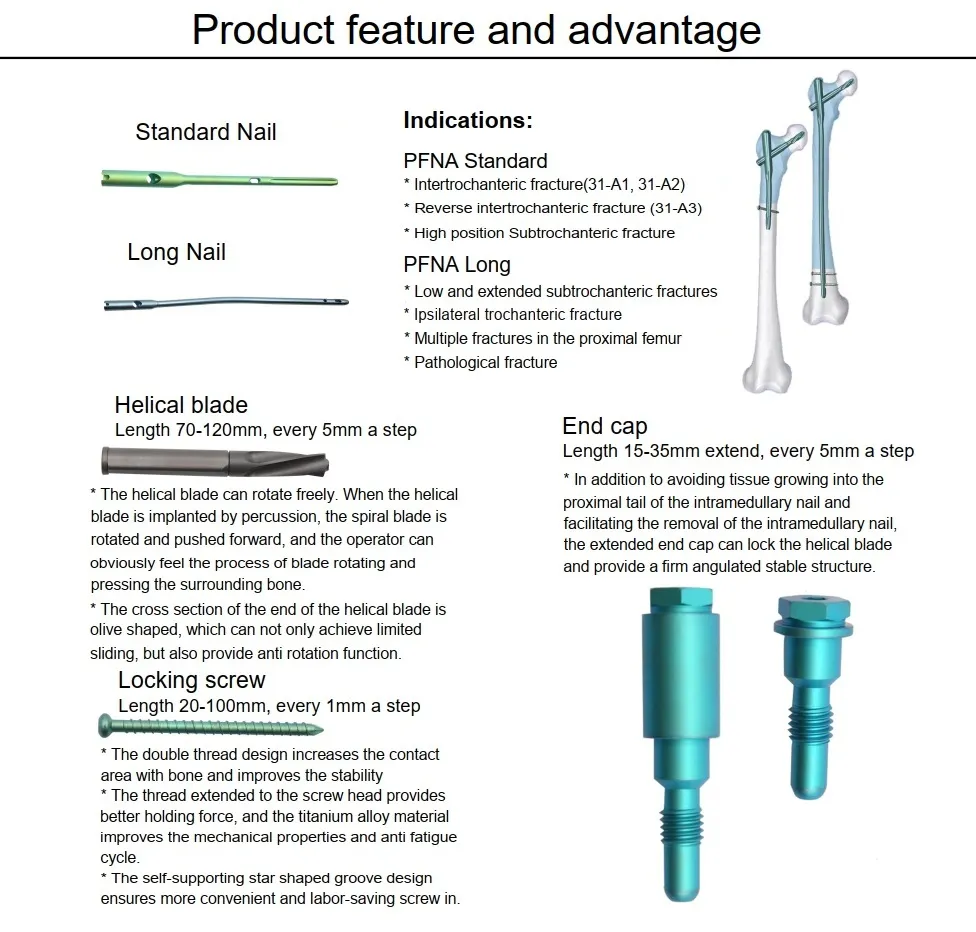

Product Diagram 1

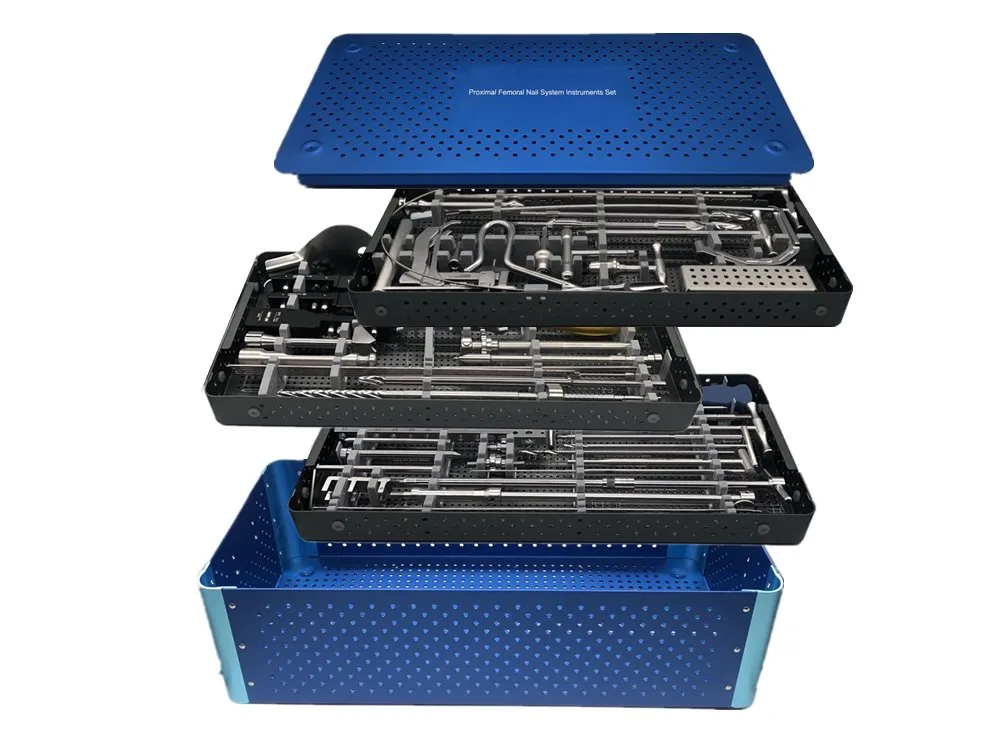

Product Diagram 2
📦

Packing & Delivery

Packaging Detail 1
Packaging Detail 2

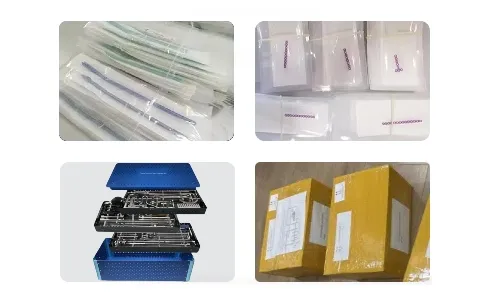

Packing Details:

- Implants: Inner plastic bag + outer carton box.
- Instruments Set: Inner instruments box + outer carton box.
- Customized packing design service available.

Delivery Methods:

- International Express: DHL, UPS, FedEx, etc.
- Standard Air Freight options available.

🏭

Manufacturing Excellence

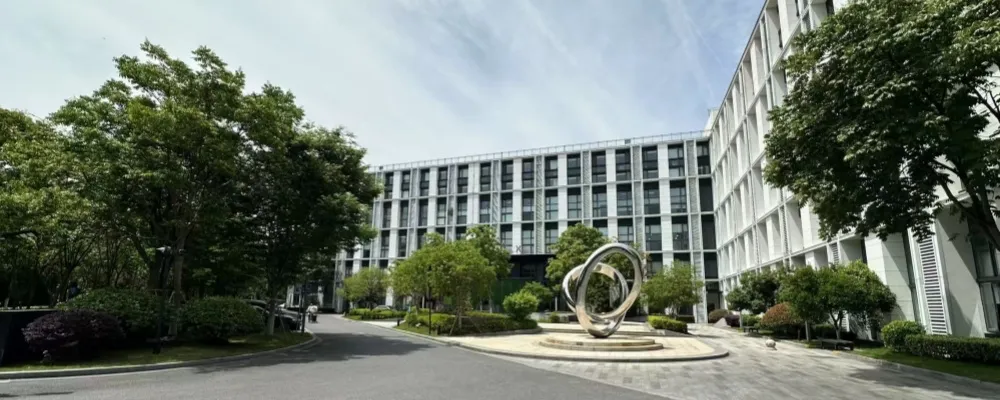

Production Facility
  • Scale: Facility covers an area of 30,000 square meters.
  • Advanced Equipment: High-end CNC machining equipment imported from the United States.
  • Quality Control: Precision detection equipment imported from Japan to ensure rigorous standards.
  • Production Capacity: Capable of producing 10,000 units per month.

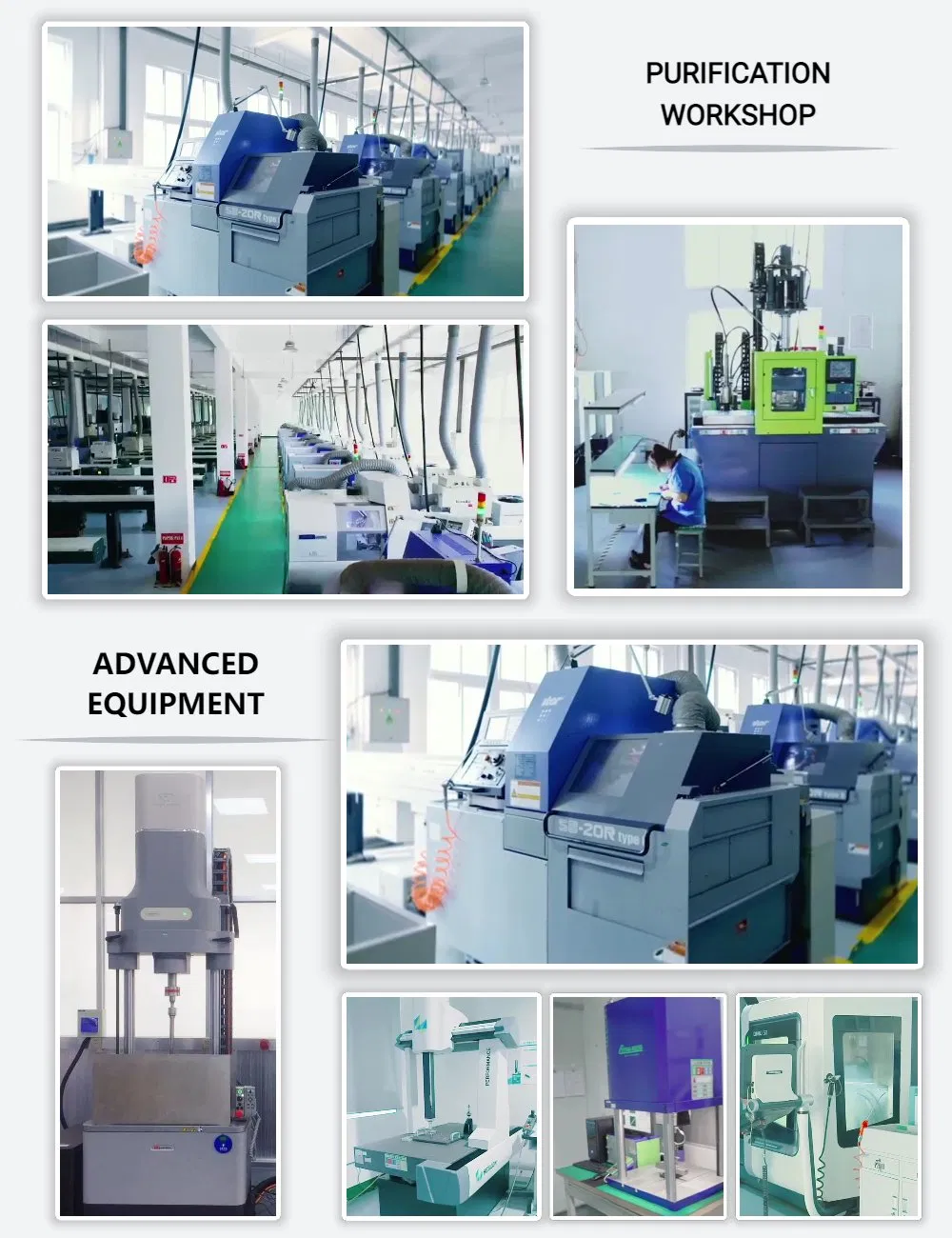

Quality Testing
📜

Certifications & Exhibitions

Certificates
Exhibitions
?

Frequently Asked Questions

Do you hold international quality certifications?
Yes, we are fully certified with ISO 9001:2015 and EN ISO 13485:2016 for medical device manufacturing.
What are the available shipping modes?
Normally we ship through DHL Express, FedEx, or UPS. We can also accommodate specific postal or air freight requests from clients.
What is the typical lead time for orders?
General delivery is 15-30 days for in-stock items. For non-stock items or large quantities, the timeframe is typically 30-60 days.
Are samples available for evaluation?
Yes, we provide samples for quality evaluation, though they are subject to an additional sample cost.
What is your policy for defective products?
For any verified manufacturing defects, please provide photographic evidence. Once confirmed, we will arrange for a replacement.
Can you provide customized manufacturing (OEM/ODM)?
Yes, we offer comprehensive OEM and ODM services, including customized packaging and product modifications to meet specific surgical needs.
