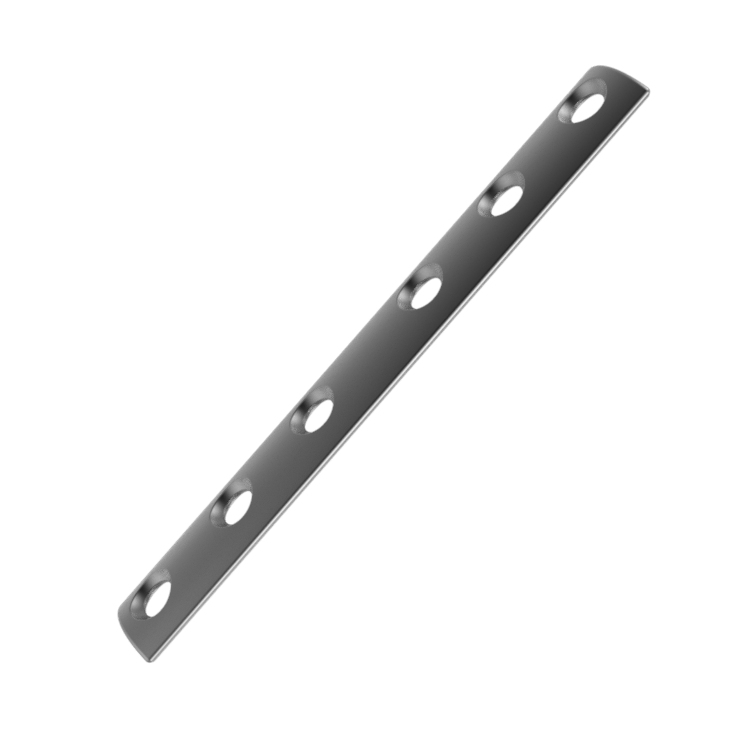

Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate
Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate
Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate
Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate
Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate
1 / 5
Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate
Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate
Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate
Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate
Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate

Canwell 1/3 Tubular Locking Plate, Orthopedic Implants One-Third Tubular Locking Plate

Customization: Available
Certification: FDA, ISO, CE, ISO9001
Disinfection: Without Disinfection
Send Inquiry

Product Description

i

Basic Information

Model NO.
1/3 Tubular Locking Plate
Material
Titanium
Color
Transparent / Dark
Application
Orthopedic Implant
Certificate
ISO13485, ISO9001
Surface Finished
Anodizing
HS Code
9021100000
Capacity
1000/Month
★

Product Description

LC-DCP Limited Contact Plate - Orthopedic Trauma Implants

Our advanced plating systems are designed for optimal recovery in trauma surgery. The SLP/LLP series offers versatile solutions for fracture fixation.

  • The Combi-holes allow placement of conventional cortex and cancellous bone screws on one side or threaded locking screws on the opposite side.
  • Periarticular Plates are pre-contoured to create an anatomical fit, requiring minimal additional bending and reducing soft tissue impingement.
  • Locking screws feature a stardrive recess and self-tapping flutes for secure installation.
  • Large core diameter improves bending and shear strength, distributing the load over a larger bone area.
  • Special double lead thread beneath the screw head engages and locks into the plate's threaded holes.

Available Variants: Proximal Humeral Locking Plate, Proximal Middle Tibial Locking Plate, and Small Fragment Plating System.

📋

Specifications

Spec (Holes) Length (mm) P.N Material
4 Holes49mm122125004Titanium
5 Holes61mm122125005Titanium
6 Holes73mm122125006Titanium
7 Holes85mm122125007Titanium
8 Holes97mm122125008Titanium
9 Holes109mm122125009Titanium
10 Holes121mm122125010Titanium
11 Holes133mm122125011Titanium
12 Holes145mm122125012Titanium
📷

Product Display

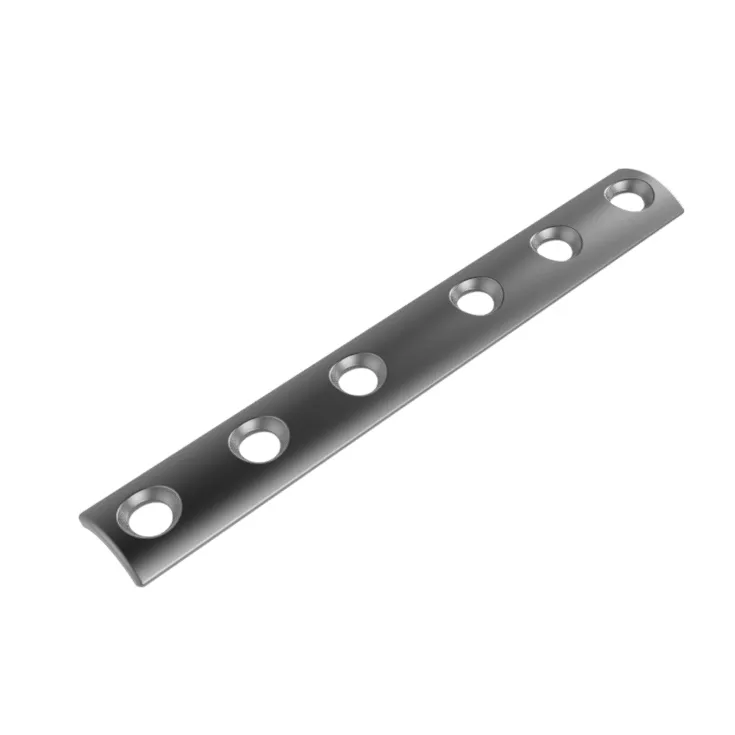

1/3 Tubular Locking Plate Display 1

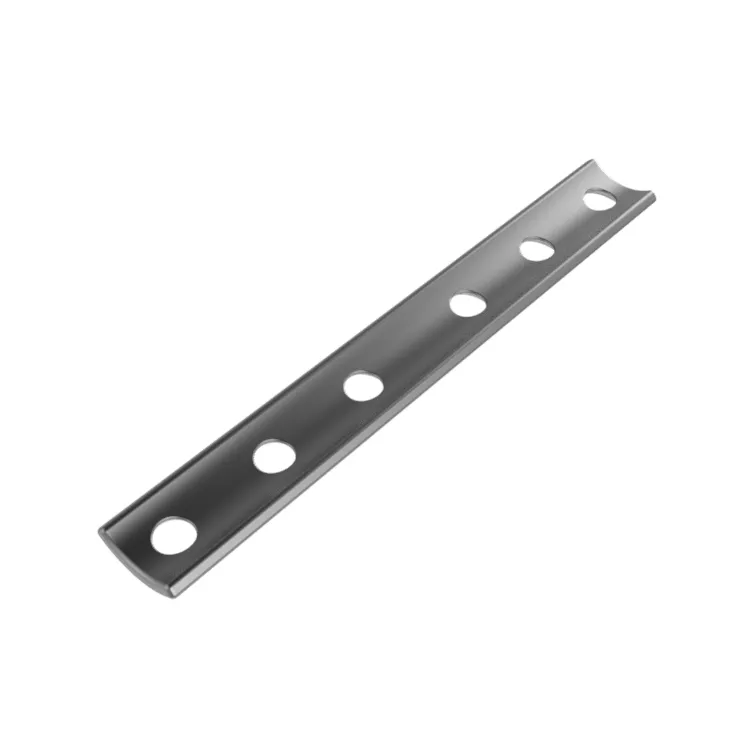

1/3 Tubular Locking Plate Display 2

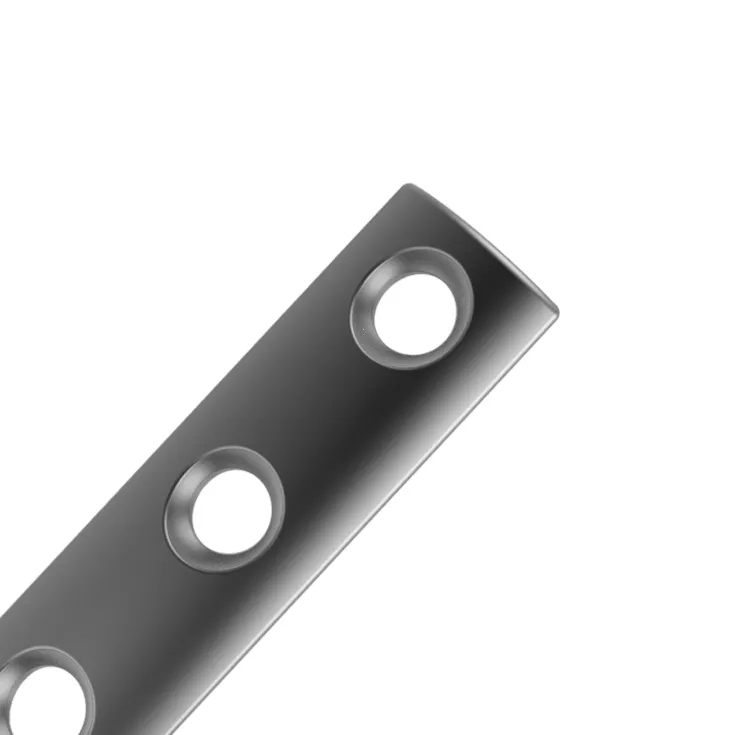

1/3 Tubular Locking Plate Display 3
1/3 Tubular Locking Plate Overview
?

Frequently Asked Questions

What material is used for the 1/3 Tubular Locking Plate?
The plate is manufactured from high-quality Titanium, which ensures excellent biocompatibility and strength for orthopedic implants.
What are Combi-holes?
Combi-holes are a versatile design feature that allows for the use of either conventional cortex/cancellous bone screws or threaded locking screws within the same hole.
What hole configurations are available?
The One-third Tubular Plate is available in a range of sizes from 4 holes (49mm) up to 12 holes (145mm) to suit different surgical requirements.
Does the plate require bending before surgery?
These plates are pre-contoured for an anatomical fit, which typically reduces the need for additional bending and minimizes interference with soft tissues.
What quality standards do these implants meet?
The products are manufactured under strict quality control and are certified to ISO13485 and ISO9001 standards.
What is the surface finish of the plates?
The plates undergo an anodizing process to enhance surface properties and durability.
